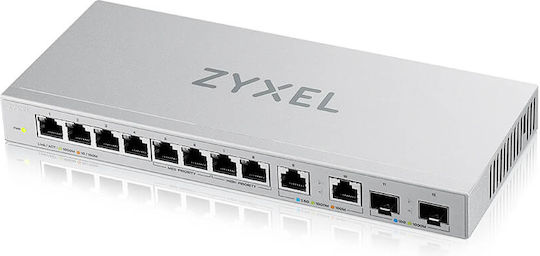

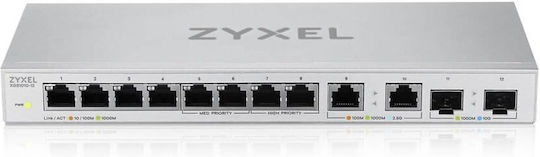

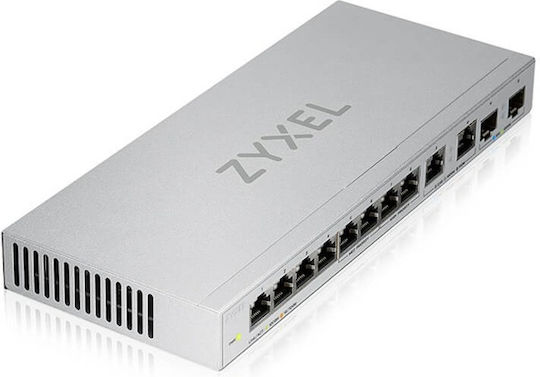

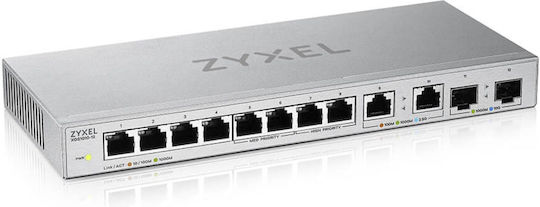

Zyxel XGS1010-12-ZZ0102F
- Switch Type: Unmanaged
- Basic RJ-45 Ethernet Switch Ports Type: Gigabit Ethernet (10/100/1000)
- Number of Basic RJ-45 Ethernet Switch Ports: 8
- Full Duplex: YES
- Address Table Size: 16000 entries
- Routing/Switching Capacity: 66 Gbit/s
- Network Standard: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
- DC Input Voltage: 12 V
- Number of 2.5G Ethernet Ports (copper): 2
- Number of SFP+ Module Slots: 2
- Ethernet LAN Data Rates: 10, 100, 1000 Mbit/s
- Forwarding Rate: 49 Mpps
- Jumbo Frames: 12000
- Packet Buffer Memory: 1.5MB
- Product Color: Gray
- Power Source: AC/DC
- AC Input Voltage: 100 - 240V
- DC Input Voltage: 12V
- Input Operating Current: 1.5A
- Power Consumption (max): 15.61W
- Operating Temperature Range: 0 - 40°C
- Storage Temperature Limits: -40 - 70°C
- Operating Humidity Range: 10 - 90%
- Weight: 768g
- Dimensions: Width 250mm, Depth 104mm, Height 24mm
Network Specifications
- Type
- Unmanaged
- Layer
- L2
- PoE
- No
Technical Specifications
- Ethernet connections
- 8 Port
- Ethernet Speed
- 1000 Mbps
- SFP connections
- 2 Port
- Rack mounting
- No
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
