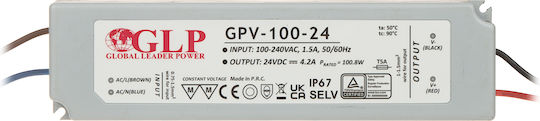

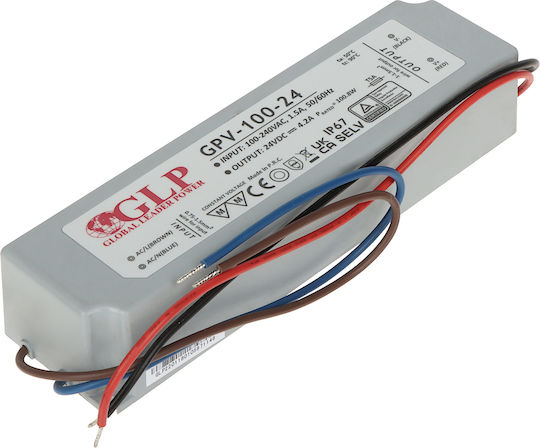

The MPL 219020 power supply converts AC voltage to DC and delivers 100 W at 24 V, with an output current of 4.2 A. Its sealed construction with an IP67 protection rating makes it suitable for humid environments, while its switching operation makes it suitable for use in LED lighting systems.
It has Class II insulation and operates at temperatures from -30 to +70 °C. It complies with the EN55015 lighting standard and is TÜV certified.
- Power: 100 W
- Output voltage: 24 V DC
- Output current: 4.2 A
- Protection rating: IP67
- Type: Switching
- Insulation class: II
- Operating temperature: From -30 to +70 °C
- Lighting standard: EN55015
- Certification: TÜV
- Dimensions: 187 × 52 × 37 mm
- Package contents: 1 MPL Power Elektro GPV-100-24 power supply
Dimensions
- Output (DC)
- 24 V
- Power
- 100 W
- Waterproofing
- IP67
Smart Features
- Smart Ecosystem
- -
