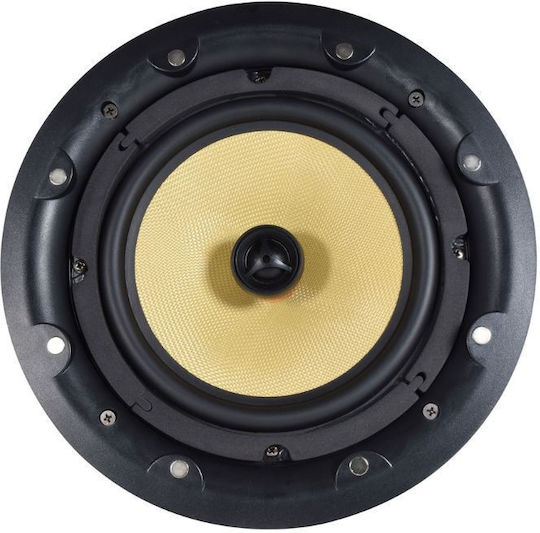

The Adastra KV8T powered ceiling speaker is a two-way speaker for 100 V voice and background music systems. It features a glass-aramid cone main driver, a coaxial dome tweeter and a waveguide driver diaphragm for 120° sound dispersion. The volume is controlled via a 4-core cable, with three selectable power taps.
- Mounting: Ceiling
- Quantity: 1
- Colour: White
- Frequency distribution: 2-way
- Operation: Powered
- RMS power: 40 W
- Power taps: 10 W, 20 W, 40 W and 8 Ω (80 W)
- Impedance: 250 Ω, 500 Ω, 1.3 kΩ or 8 Ω
- Sensitivity: 90 dB
- Maximum sound pressure level: 105 dB
- Frequency response: 50 Hz–20 kHz
- Dispersion angle: 120°
- Frame material: ABS
- Grille material: Powder-coated steel

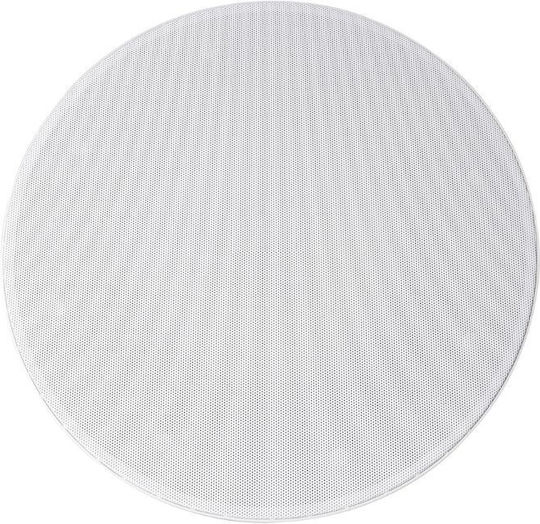

- Grille: Magnetic, low-profile
- Cut-out diameter: 255 mm
- Mounting depth: 110 mm
- Dimensions: 110 × 281 mm
- Product Number
- 952.282UK
Technical Specifications
- Power (RMS)
- 40 W
- Driver Configuration
- 2 No of Drivers
- Nominal Impendance
- 8 ohm
- Sensitivity
- 90 dB
Main Specifications
- Placing
- Ceiling
- Quantity
- Piece
- Colour
- White
- Functionality
- Active
- IP Protection Rating
- -
- Mounting Bracket
- -
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
