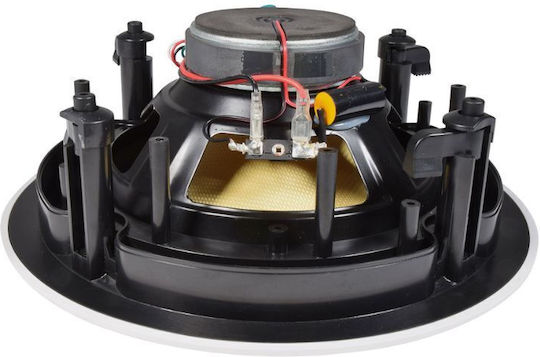

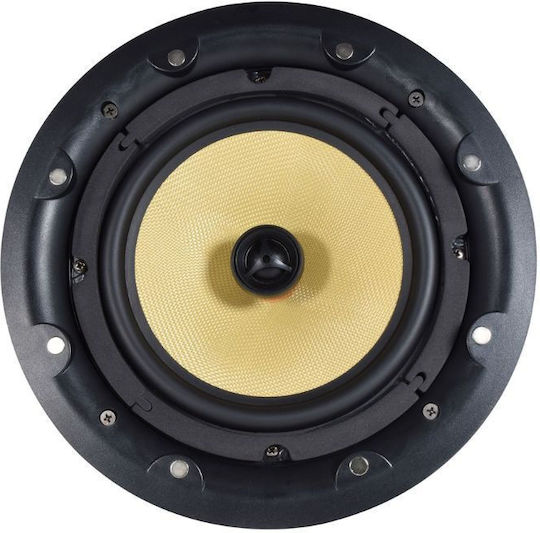

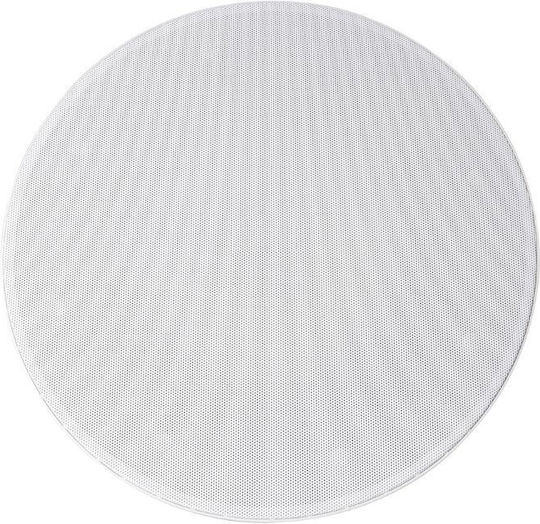

Adastra KV5T Ceiling Speaker 5.25'' Two-Way 100V White
Two-way ceiling speakers of top-quality ABS with a magnetic grille and frameless design for high-quality music playback in an elegant design. The high-energy glass-aramid main drivers are combined with a coaxial dome tweeter and connected to a wave guide diaphragm for optimal sound dispersion. Each KV-T speaker is equipped with a 100 V transformer with selectable volume settings. High-performance ceiling speakers for integration with 100V voice and background music systems.
- Construction: ABS chassis & steel grille with powder coating
- Dispersion angle: 120°
- HF driver: 25mmØ (1") ASV diaphragm
- Impedance: 500, 1k, 2k Ohms or 8 Ohms
- Tappings: 5W, 10W, 20W & 8 Ohms (40W)
- Magnet weight: 270g
- SPL @ 1W/1m: 89dB
- Max. SPL: 100dB
- Frequency response: 80Hz - 20kHz
- Cutout diameter: 180mmØ
- Mounting depth: 80mm
- Dimensions: 80 x 206mmØ
- Product Number
- 952.280UK
Technical Specifications
- Power (RMS)
- 20 W
- Driver Configuration
- 2 No of Drivers
- Nominal Impendance
- 8 ohm
- Sensitivity
- 89 dB
Main Specifications
- Placing
- Ceiling
- Quantity
- Piece
- Colour
- White
- Functionality
- Active
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
