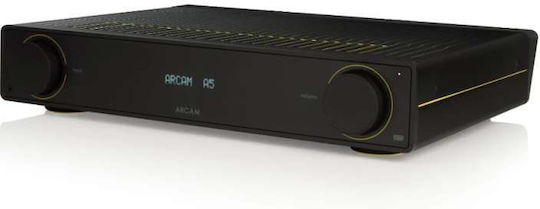

The A5 is one of Arcam's latest generation models, with over 45 years of experience in amplifier design and manufacturing. New components and materials have been carefully selected to ensure exceptional sound quality.

Features:

• Bluetooth: Qualcomm AptX Adaptive technology with up to 24bit HD audio.
• Wireless headphone connection: Supported.
• Digital connections: Numerous available options.
• Pre-amplifier stage: Special attention has been given to the phono stage for turntables, ensuring high fidelity in vinyl playback.

Power terms:

• Continuous power output (0.5% THD), per channel: 50W (8Ω, 20Hz - 20kHz), 75W (4Ω, 1kHz).
• Harmonic distortion: 0.003% (80% power, 8Ω at 1kHz).

Analog inputs:

• Number of inputs: 3 (RCA pairs).
• Signal-to-noise ratio: 106dB (A-wtd, ref. 50W, 1V input).
• Frequency response: 20Hz—20kHz ± 0.2dB.
• Phono (MM) input: 47kΩ + 100pF input, 20Hz—20kHz ± 1dB.

Digital inputs:

• Supported Sample Rates (kHz): Coaxial (RCA) 192, 176.4, 96, 88.2, 48, 44.1 | Optical (Toslink) 192, 176.4, 96, 88.2, 48, 44.1.
• Bit depths (bit): 24, 16.
• Signal-to-noise ratio: 109dB (A-wtd, ref. 50W, 0dBFS).

Headphone output:

• Maximum output level (RMS) at 32Ω/300Ω: 2.5V/5V.
• Load range: 16Ω - 2kΩ.

General characteristics:

• Mains voltage: 100V or 110–120V or 220–240V, 50–60Hz.
• Power consumption (maximum): 350W.
• Power consumption (standby).
• Dimensions (W x D x H): 431 x 344 x 83mm.
• Weight (net): 8kg.
• Weight (packaged): 11kg.

Additional accessories: Power cable, remote control with 2 x AAA batteries, quick start guide, important safety instructions.
