Hensel Surface Mounted Electrical Box in Gray Color

External Junction Box - Hensel DK1600G-IP66 - Gray Ral 7035

Designed for the protection of electrical and non-electrical connections, with integrated rubber membranes that can be removed for cable...

External Junction Box - Hensel DK1600G-IP66 - Gray Ral 7035

Designed for the protection of electrical and non-electrical connections, with integrated rubber membranes that can be removed for cable entry through a spiral. Sealing range 17.0-30.0 mm, with two M32 cable entries at the back and lid connectors that seal without accessories. Includes a lid...

See full description See full description
What if it breaks?

You're covered by the statutory 2-year warranty. Contact us and we'll handle the entire process with the store, ensuring your issue is resolved with prompt support through a repair, replacement, or refund.

What if I change my mind?

No problem, as long as it's within 14 days. We'll come pick it up or you can choose the Skroutz Point that suits you, completely free for up to 2 times per year, and we'll refund your money. Get Skroutz Plus to enjoy unlimited free returns.

Learn more about invoicing

Description

Description

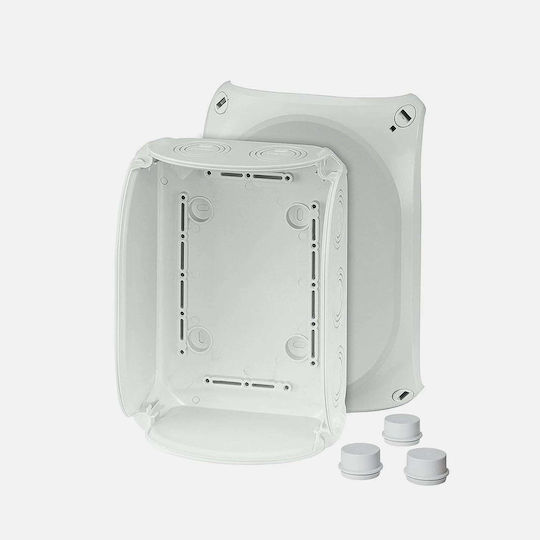

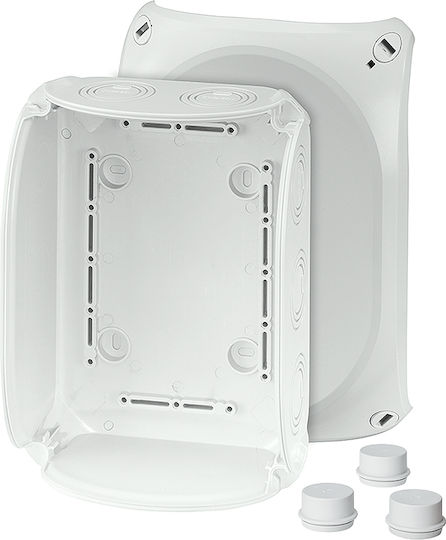

External Junction Box - Hensel DK1600G-IP66 - Gray Ral 7035

Designed for the protection of electrical and non-electrical connections, with integrated rubber membranes that can be removed for cable entry through a spiral. Sealing range 17.0-30.0 mm, with two M32 cable entries at the back and lid connectors that seal without accessories. Includes a lid retaining strap and external supports for wall mounting.

  • Protection level = IP 66
  • Rated insulation voltage Ui = 1000 V a.c./d.c
  • Material: PC (polycarbonate)
  • Mounting width: 175 mm
  • Mounting height: 120 mm
  • Maximum installation depth: 76 mm
  • Width: 210 mm
  • Height: 155 mm
  • Depth: 92 mm
  • Weight: 0.444 kg
  • According to IEC 60670-22
  • Certifications: RoHS Directive 2015/863/EU, REACH regulation 1907/2008/EG, VDE

To close the open membranes use grommet type EDK.

Manufacturer

See full description

Specifications

Specifications

Placement
Outdoor
Branching
No
Plasterboard
No
Colour
Grey

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
Questions

Questions

Do you have a question about the product?

Those users who have this product can help you

Ask for the product

Description & Specifications

External Junction Box - Hensel DK1600G-IP66 - Gray Ral 7035

Designed for the protection of electrical and non-electrical connections, with integrated rubber membranes that can be removed for cable entry through a spiral. Sealing range 17.0-30.0 mm, with two M32 cable entries at the back and lid connectors that seal without accessories. Includes a lid retaining strap and external supports for wall mounting.

  • Protection level = IP 66
  • Rated insulation voltage Ui = 1000 V a.c./d.c
  • Material: PC (polycarbonate)
  • Mounting width: 175 mm
  • Mounting height: 120 mm
  • Maximum installation depth: 76 mm
  • Width: 210 mm
  • Height: 155 mm
  • Depth: 92 mm
  • Weight: 0.444 kg
  • According to IEC 60670-22
  • Certifications: RoHS Directive 2015/863/EU, REACH regulation 1907/2008/EG, VDE

To close the open membranes use grommet type EDK.

Manufacturer

Placement
Outdoor
Branching
No
Plasterboard
No
Colour
Grey

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

24,90 €
4,50 €   shipping cost
