Uniarch DVR NVR NVR-216S2-P16
Surveillance Video Recorders

Uniarch DVR NVR NVR-216S2-P16

The Uniarch NVR-216S2-P16 recorder records video from up to 16 channels and supports resolutions of up to 8 MP. It features 16 independent PoE ports, with a maximum output of 30 W per port and 240 W...

The Uniarch NVR-216S2-P16 recorder records video from up to 16 channels and supports resolutions of up to 8 MP. It features 16 independent PoE ports, with a maximum output of 30 W per port and 240 W in total, as well as Ultra 265, H.265 and H.264 decoding. Simultaneous HDMI and VGA output allows video to be displayed through the corresponding ports.

It...

See full description See full description

Top specs

  • Type

    NVR

    Recorder that uses IP cameras and network connection for video recording and management.

  • Number of Channels

    The maximum number of cameras that can be connected to and managed by the recorder

  • Resolution

    4K

    The highest resolution available on the market (also known as 8 Megapixels). It offers 4 times more detail than Full HD. This is cinematic quality that allows for maximum possible zoom to recognize critical details, even from a great distance.

  • HDD Slots

    The number of internal hard drives (SATA) that can be installed simultaneously in the recorder.

  • Maximum Capacity per Disk

    The maximum size (in TB - Terabytes) of the hard drive that the device "recognizes" and supports in each slot.

  • ONVIF

    ONVIF is a protocol that allows cameras and recorders from different manufacturers to communicate with each other.

  • Ports

    PoE

    These ports allow you to connect IP cameras directly to the recorder. The camera receives power and transmits video through the same network cable, making installation extremely simple (plug-and-play).

    VGA

    An analog video output. Used to connect the recorder to older computer monitors.

    HDMI

    The digital output for video and audio. It is the standard way to connect the recorder to a modern TV or monitor (PC) and view your cameras in high resolution.

    Alarm Input

    Physical ports (terminals) that allow external sensors (e.g., door magnetic contact, radar) to send a "command" to the recorder (e.g., "The door just opened, start recording or send a notification").

    Alarm Output

    Physical ports (terminals) that allow the recorder to give a "command" to external devices. For example, "As soon as I detect a person, activate an external siren or turn on the lights."

    USB

    Its main use is to connect a mouse for menu navigation and settings. Additionally, it is used to connect a USB stick (flash drive) in order to export (take a backup of) specific video clips that interest you.
  • See all
What if it breaks?

You're covered by the statutory 2-year warranty. Contact us and we'll handle the entire process with the store, ensuring your issue is resolved with prompt support through a repair, replacement, or refund.

What if I change my mind?

No problem, as long as it's within 14 days. We'll come pick it up or you can choose the Skroutz Point that suits you, completely free for up to 2 times per year, and we'll refund your money. Get Skroutz Plus to enjoy unlimited free returns.

Learn more about invoicing
Review the product
Product report

Description

Description

The Uniarch NVR-216S2-P16 recorder records video from up to 16 channels and supports resolutions of up to 8 MP. It features 16 independent PoE ports, with a maximum output of 30 W per port and 240 W in total, as well as Ultra 265, H.265 and H.264 decoding. Simultaneous HDMI and VGA output allows video to be displayed through the corresponding ports.

It supports human detection and camera-based video analytics, such as intrusion and line-crossing detection. Playback is synchronized for up to 16 channels, while the two SATA bays support drives with a capacity of up to 10 TB each.

  • Type: PoE NVR
  • Channels: 16
  • Recording resolution: Up to 8 MP
  • Video compression: Ultra 265, H.265, H.264
  • PoE ports: 16 independent 100 Mbps ports
  • PoE power: Up to 30 W per port and 240 W in total
  • Hard drive bays: 2 SATA
  • Maximum drive capacity: 10 TB per drive
  • Detection: Human, motion, video loss, intrusion, line crossing, region entry and exit
  • Compatibility: ONVIF
  • Video outputs: 4K HDMI and VGA
  • Audio input: 1 RCA
  • Audio output: 1 RCA
  • Alarm inputs: 4
  • Alarm outputs: 1
  • USB ports: 2 USB 2.0
  • Network interface: 1 RJ-45 10/100/1000 Mbps
  • Power supply: 220 V AC
  • Power consumption: Up to 9 W without a hard drive
  • Operating temperature: From -10 °C to 55 °C
  • Operating humidity: Up to 90% RH, non-condensing

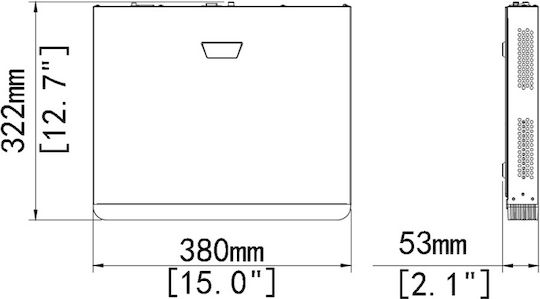

  • Dimensions: 380 × 322 × 53 mm
  • Weight: Approximately 2.4 kg
  • Package contents: Wired mouse, power cable, connection cables, screws, user manual

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Specifications

Type
NVR

Type

NVR
Recorder that uses IP cameras and network connection for video recording and management.
Number of Channels Outputs
16

Number of Channels Outputs

The maximum number of cameras that can be connected to and managed by the recorder
Resolution
4K

Resolution

4K

The highest resolution available on the market (also known as 8 Megapixels). It offers 4 times more detail than Full HD. This is cinematic quality that allows for maximum possible zoom to recognize critical details, even from a great distance.
WiFi
No

WiFi

Specifies whether the device can connect wirelessly to your router (Wi-Fi)
Number of POE
16

Number of POE

Specifies how many IP cameras can be connected directly to the recorder (NVR) and powered by it. Each PoE port provides power and data through the same cable (plug-and-play).
Gigabit Port
No

Gigabit Port

Specifies the speed of the wired network connection (LAN). "Gigabit" (1000 Mbps) is 10 times faster than standard "Fast Ethernet" (100 Mbps). It is essential for multi-channel 4K NVRs to handle the large volume of data from the cameras without delay.
Ports
PoE, VGA, HDMI, Alarm Input, Alarm Output, USB

Ports

PoE

These ports allow you to connect IP cameras directly to the recorder. The camera receives power and transmits video through the same network cable, making installation extremely simple (plug-and-play).

VGA

An analog video output. Used to connect the recorder to older computer monitors.

HDMI
The digital output for video and audio. It is the standard way to connect the recorder to a modern TV or monitor (PC) and view your cameras in high resolution.
Alarm Input
Physical ports (terminals) that allow external sensors (e.g., door magnetic contact, radar) to send a "command" to the recorder (e.g., "The door just opened, start recording or send a notification").
Alarm Output
Physical ports (terminals) that allow the recorder to give a "command" to external devices. For example, "As soon as I detect a person, activate an external siren or turn on the lights."
USB

Its main use is to connect a mouse for menu navigation and settings. Additionally, it is used to connect a USB stick (flash drive) in order to export (take a backup of) specific video clips that interest you.
ONVIF
Yes

ONVIF

ONVIF is a protocol that allows cameras and recorders from different manufacturers to communicate with each other.

Smart AI Detection

Human Detection
Yes

Human Detection

The technology recognizes human shapes in real time. Ideal for security, area monitoring, or alarms, reducing false alarms caused by other objects.
Vehicle Detection
No

Vehicle Detection

Recognizes and tracks vehicles, distinguishing them from other objects. Useful for parking, traffic management, or road surveillance.

HDD

HDD Slots
2

HDD Slots

The number of internal hard drives (SATA) that can be installed simultaneously in the recorder.
Maximum Capacity per Disk
10 TB

Maximum Capacity per Disk

The maximum size (in TB - Terabytes) of the hard drive that the device "recognizes" and supports in each slot.
Includes Hard Drive
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
Questions

Questions

Do you have a question about the product?

Those users who have this product can help you

Ask for the product

Description & Specifications

The Uniarch NVR-216S2-P16 recorder records video from up to 16 channels and supports resolutions of up to 8 MP. It features 16 independent PoE ports, with a maximum output of 30 W per port and 240 W in total, as well as Ultra 265, H.265 and H.264 decoding. Simultaneous HDMI and VGA output allows video to be displayed through the corresponding ports.

It supports human detection and camera-based video analytics, such as intrusion and line-crossing detection. Playback is synchronized for up to 16 channels, while the two SATA bays support drives with a capacity of up to 10 TB each.

  • Type: PoE NVR
  • Channels: 16
  • Recording resolution: Up to 8 MP
  • Video compression: Ultra 265, H.265, H.264
  • PoE ports: 16 independent 100 Mbps ports
  • PoE power: Up to 30 W per port and 240 W in total
  • Hard drive bays: 2 SATA
  • Maximum drive capacity: 10 TB per drive
  • Detection: Human, motion, video loss, intrusion, line crossing, region entry and exit
  • Compatibility: ONVIF
  • Video outputs: 4K HDMI and VGA
  • Audio input: 1 RCA
  • Audio output: 1 RCA
  • Alarm inputs: 4
  • Alarm outputs: 1
  • USB ports: 2 USB 2.0
  • Network interface: 1 RJ-45 10/100/1000 Mbps
  • Power supply: 220 V AC
  • Power consumption: Up to 9 W without a hard drive
  • Operating temperature: From -10 °C to 55 °C
  • Operating humidity: Up to 90% RH, non-condensing
  • Dimensions: 380 × 322 × 53 mm
  • Weight: Approximately 2.4 kg
  • Package contents: Wired mouse, power cable, connection cables, screws, user manual

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Type
NVR

Type

NVR
Recorder that uses IP cameras and network connection for video recording and management.
Number of Channels Outputs
16

Number of Channels Outputs

The maximum number of cameras that can be connected to and managed by the recorder
Resolution
4K

Resolution

4K

The highest resolution available on the market (also known as 8 Megapixels). It offers 4 times more detail than Full HD. This is cinematic quality that allows for maximum possible zoom to recognize critical details, even from a great distance.
WiFi
No

WiFi

Specifies whether the device can connect wirelessly to your router (Wi-Fi)
Number of POE
16

Number of POE

Specifies how many IP cameras can be connected directly to the recorder (NVR) and powered by it. Each PoE port provides power and data through the same cable (plug-and-play).
Gigabit Port
No

Gigabit Port

Specifies the speed of the wired network connection (LAN). "Gigabit" (1000 Mbps) is 10 times faster than standard "Fast Ethernet" (100 Mbps). It is essential for multi-channel 4K NVRs to handle the large volume of data from the cameras without delay.
Ports
PoE, VGA, HDMI, Alarm Input, Alarm Output, USB

Ports

PoE

These ports allow you to connect IP cameras directly to the recorder. The camera receives power and transmits video through the same network cable, making installation extremely simple (plug-and-play).

VGA

An analog video output. Used to connect the recorder to older computer monitors.

HDMI
The digital output for video and audio. It is the standard way to connect the recorder to a modern TV or monitor (PC) and view your cameras in high resolution.
Alarm Input
Physical ports (terminals) that allow external sensors (e.g., door magnetic contact, radar) to send a "command" to the recorder (e.g., "The door just opened, start recording or send a notification").
Alarm Output
Physical ports (terminals) that allow the recorder to give a "command" to external devices. For example, "As soon as I detect a person, activate an external siren or turn on the lights."
USB

Its main use is to connect a mouse for menu navigation and settings. Additionally, it is used to connect a USB stick (flash drive) in order to export (take a backup of) specific video clips that interest you.
ONVIF
Yes

ONVIF

ONVIF is a protocol that allows cameras and recorders from different manufacturers to communicate with each other.

Smart AI Detection

Human Detection
Yes

Human Detection

The technology recognizes human shapes in real time. Ideal for security, area monitoring, or alarms, reducing false alarms caused by other objects.
Vehicle Detection
No

Vehicle Detection

Recognizes and tracks vehicles, distinguishing them from other objects. Useful for parking, traffic management, or road surveillance.

HDD

HDD Slots
2

HDD Slots

The number of internal hard drives (SATA) that can be installed simultaneously in the recorder.
Maximum Capacity per Disk
10 TB

Maximum Capacity per Disk

The maximum size (in TB - Terabytes) of the hard drive that the device "recognizes" and supports in each slot.
Includes Hard Drive
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
