Pulsar Power Supply for 16 HD Cameras
The HPSDC-12V16X1A stabilization power supply is intended for powering HD cameras or other devices that require a stabilized 12V DC voltage. The output voltage adjustment range is done with a potentiometer with a range of 12V÷15V DC.

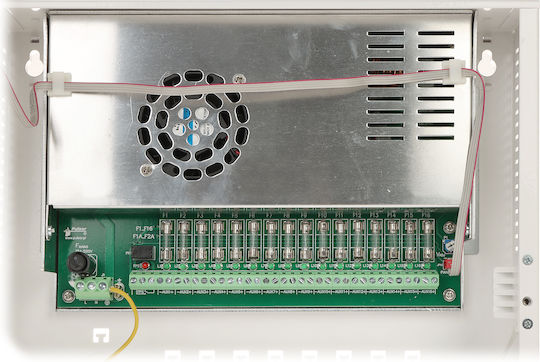

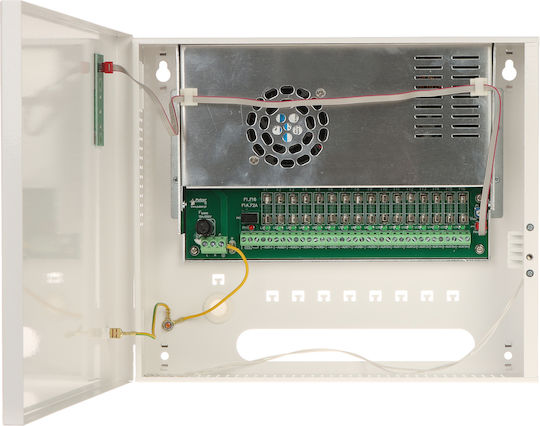

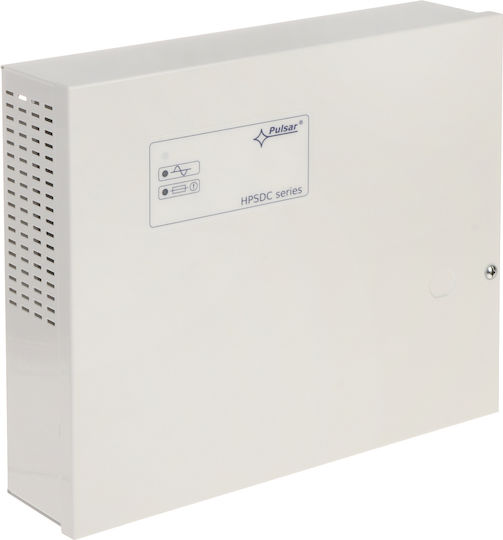

The power supply has 16 outputs that are independently protected with topik fuses. A fault (short circuit) in the output circuit will cause the topik glass fuse to melt and disconnect the circuit from the DC supply (+U). The power supply is housed in a metal cabinet with a panel.
Technical Specifications:
- Power Supply: 200÷240VAC
- Power Output: 16 x 1A/12VDC
- Voltage Adjustment Range: 12÷15VDC
- Efficiency: 85%
- Dimensions: W=300, H=258, D+D1=77+8 [+/- 2 mm]

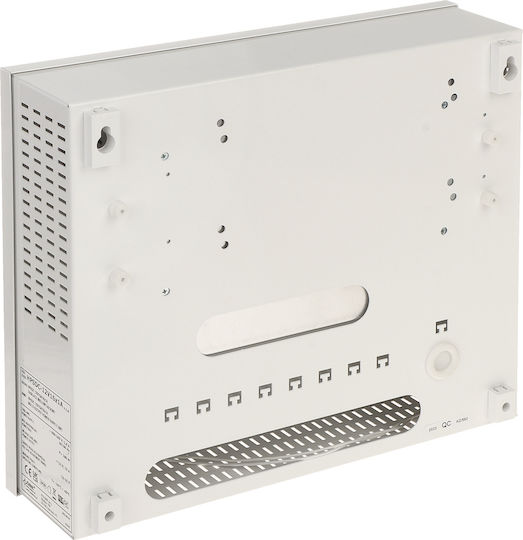

- Notes: Wall-mounted box, screw closure
It is the replacement for code PSDC161216T
- Type
- Power Box
