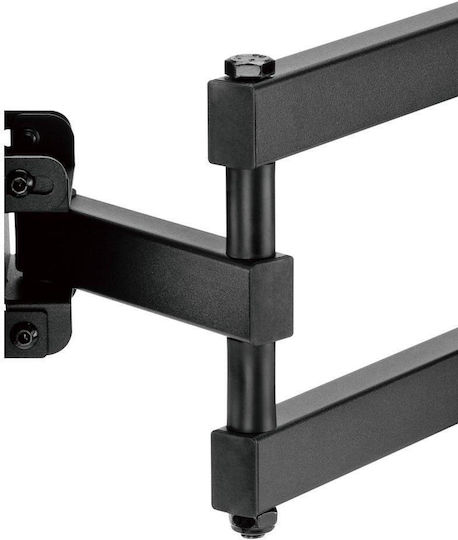

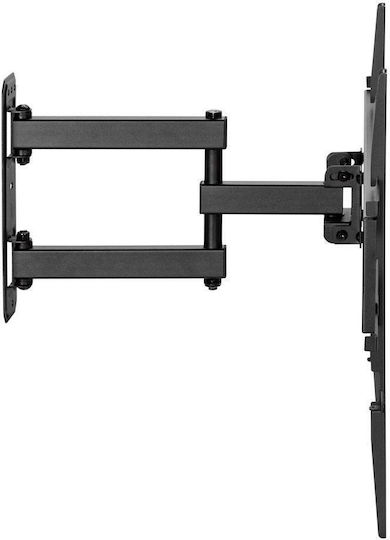

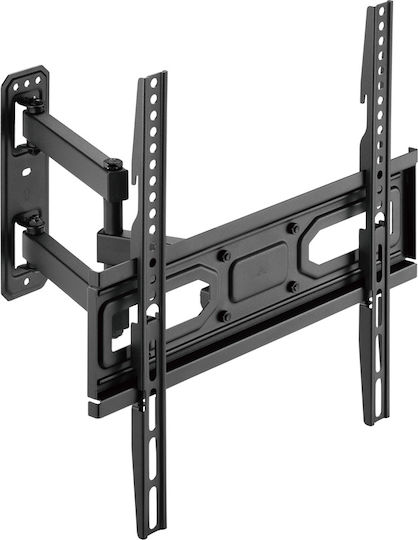

The Brateck LPA78-443 wall-mounted TV bracket features an arm that tilts from +3° to -15° and swivels from +90° to -90°. The ±3° leveling adjustment helps you position the TV.
Hook & loop cable ties are included for cable management.
- Mounting: Wall-mounted
- Type: Tilting and swiveling arm
- Compatible TV sizes: 32"–65"
- Maximum load: 35 kg
- Tilt: From +3° to -15°
- Swivel: From +90° to -90°
- Leveling adjustment: ±3°
- VESA standards: 100 x 100, 100 x 150, 100 x 200, 150 x 100, 150 x 150, 200 x 100, 200 x 200, 300 x 200, 300 x 300, 400 x 200, 400 x 300, 400 x 400
- Package contents: Hook & loop cable ties

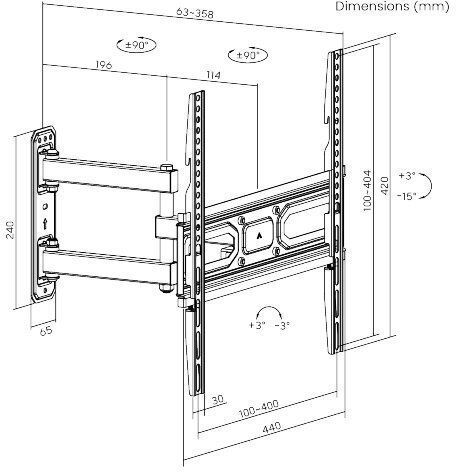

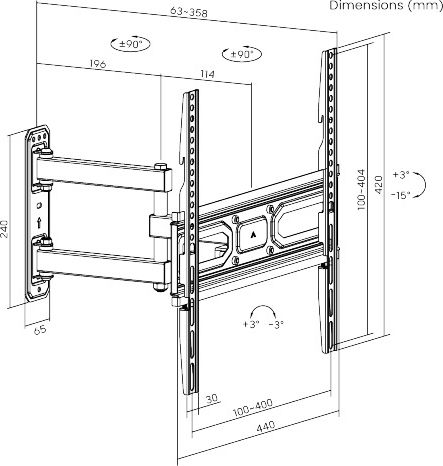

Dimensions
- Installation
- Wall mounted
- Type
- Extension Arm, With Tilt, With Rotation
- Vesa Mount
- 100 x 100, 100 x 150, 100 x 200, 150 x 100, 150 x 150, 200 x 100, 200 x 200, 300 x 200, 300 x 300, 400 x 200, 400 x 300, 400 x 400
Limits
- Minimum TV Dimensions
- 32 "
- Maximum TV Dimension
- 65 "
- Maximum Load
- 35 kg
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
