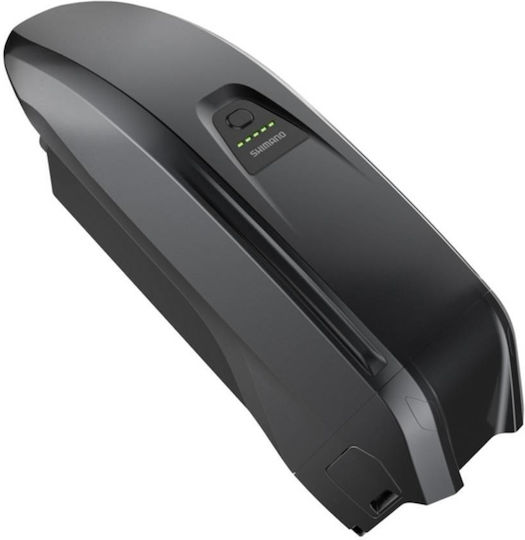

The Shimano BT-EN606 battery mounts on the down tube of an electric bike frame and has a capacity of 630 Wh. Its compact design and low centre of gravity contribute to a more natural riding feel.
It is designed for mountain bikes and is compatible with a second-generation down-tube battery mount. It retains over 60% of its original maximum capacity after 1,000 full charge cycles and has an IPX5 water-resistance rating.
- Capacity: 630 Wh
- Voltage: 36 V
- Charge capacity: 17.5 Ah
- Mounting position: Frame down tube
- Design: For mountain bikes
- Compatibility: Second-generation down-tube battery mount
- Full charging time: 6 hours with the EC-8004 charger
- Charging temperature: 0 °C to 40 °C
- Operating temperature: -10 °C to 50 °C
- Water resistance: IPX5
- Capacity retention: Over 60% after 1,000 full charge cycles
- Product Number
- IBTEN606A
- Type
- Electric Bicycle Batteries
- Bicycle Parts
- -
- Type
- E-bike
- Wheel Size
- -
