- With clockwise rotation, the space is heated in winter, while with counterclockwise rotation, the space is cooled in summer.
- In this way, the circulation of warm air trapped in the ceiling is facilitated, saving up to 30% on heating costs.

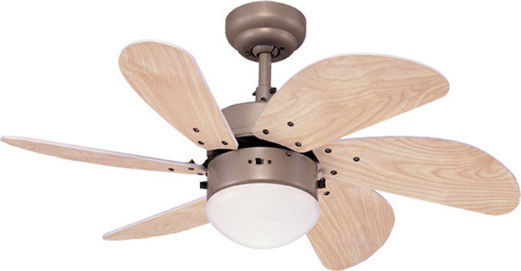

The titanium-colored surface of the casing, the flat single light with opal frosted glass, and the 6 curved blades in light maple give the Turbo Swirl its popular cheerful appearance.
A durable and almost silent AC motor made of cold-rolled steel ensures comfort throughout the year: comfortable cool climate in summer and optimal heat distribution during winter operation.
It can be equipped with either a remote control or a wall switch.
Reverse Airflow
Ability to change the blade rotation direction
- With clockwise rotation, the space is heated in winter, while with counterclockwise rotation, the space is cooled in summer.
- In this way, the circulation of warm air trapped in the ceiling is facilitated, saving up to 30% on heating costs.
What is the benefit of the reverse blade rotation direction?
A ceiling fan operating in the reverse direction (clockwise) during winter, transfers warm air from the ceiling to the lower layers of the space.
- This technique results in the circulation of warm air throughout the space, distributing heat more evenly without creating thermal stratification but rather a mixture of air with the best possible uniform temperature in the space.
- Practically, this technique yields energy savings by reducing heating costs by up to 10%.
Specifications
- Speeds: 3
- Motor: AC

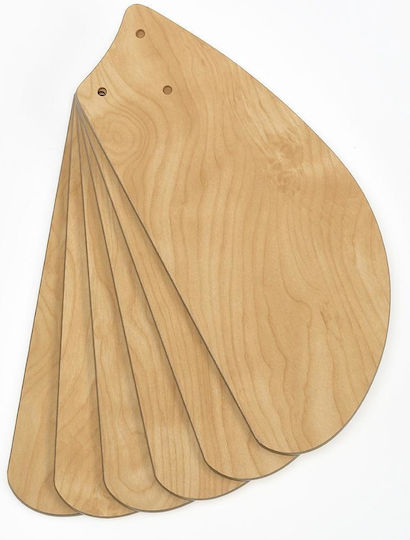

- Blade Material: MDF
- Blade Finish: Light Maple
- Blade Pitch (in degrees): 18°
- Motor: Silicon Steel Motor 153mm x 12mm
- Capacitor Type: Dual
- Mounting Type: Dual Mounting System
- Motor Housing in Titanium Finish
- with Reverse Airflow
- Lead Wire Length: 15 cm
- Tilt Angle (in degrees): 18°
- Airflow CFM: 145 m³/min (High)
- CFM/Watt: 3 W (High)
- Motor Power: 50 W (High)
- Revolutions per Minute: 250 rpm (High)
- Amp: 0.24 (High)
- CE/GS/RoHs
Dimensions
A. From the top of the canopy to the bottom of the blade: 26 cm
B. From the top of the canopy to the bottom of the house switch: 29 cm
C. From the top of the canopy to the bottom of the canopy: 6.2 cm
D. Motor housing width: 17 cm
E. Canopy width: 13 cm
F. From the top of the canopy to the bottom of the glass: 38 cm
- Fan width (inches): 30"
- Fan size: 76 cm
Product Guides
- Product Number
- 78158
Design & Appearance
- Design Type
- Classic (Visible Tabs)
- Colour
- Beige
- Frame Color
- Silver
- Blade Material
- Wood
- Number of Fins
- 6
- Children's
- No
Dimensions & Installation
- Fan Diameter
- 76 cm
- Installation on Sloped Ceiling
- No
Lighting
- Light Fixture
- Yes
- Lighting Type
- Socket for Bulb (Lamp Holder)
- Dimmable
- No
Performance & Motor
- Motor Type
- AC
- Power
- 50 W
- Speed Levels
- 3
Control & Functions
- Remote Control
- No
- Timer
- No
- Winter Mode
- Yes
- Wi-Fi
- No
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
