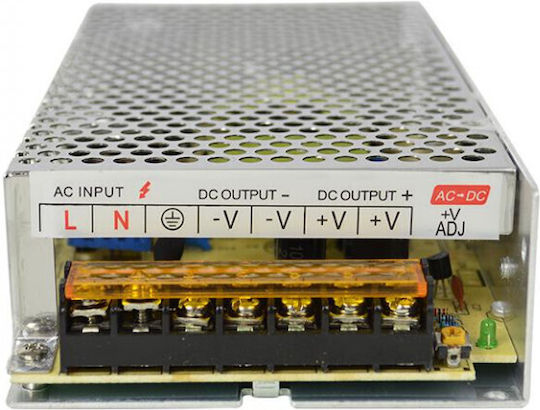

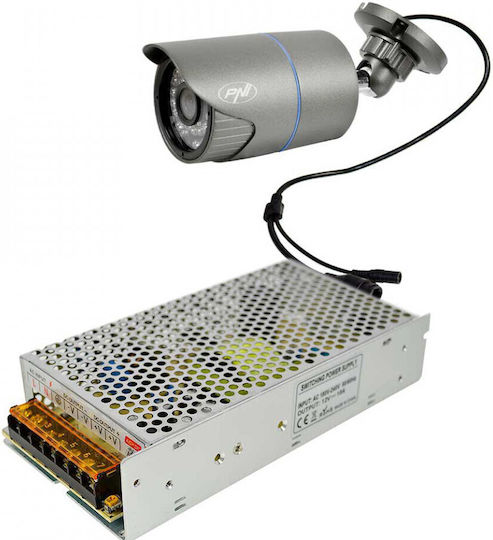

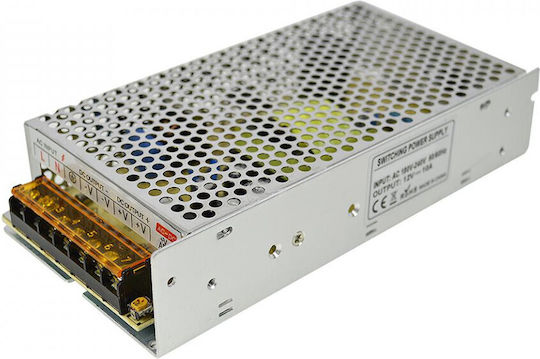

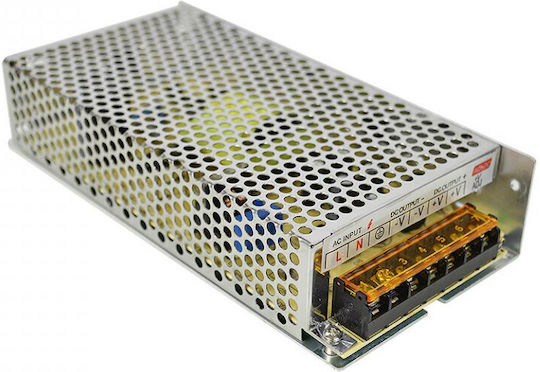

The PNI ST10A power supply can be used in access control systems, video surveillance systems, or in any application with a power consumption of less than 10A.
The PNI ST10A connects to the regular electrical power network with a voltage of 220V.
The PNI ST10A has an output of 12V and a maximum capacity of 10A.
The motherboard of the power supply is protected by a durable metal casing. Due to its small size, it can be easily installed and hidden in a junction box. Its dimensions are: 160x98x40 mm.
- Input voltage: AC 180-240V AC
- Input signal frequency: 50-60Hz
- Output voltage: 2 x 12V
- Output current: 10A (peak)
- Output power: 120W
- Efficiency: 79%
- Overload protection: From 105% to 115%
- Short circuit protection: Yes
- Operating temperature: -26 °C ~ +60 °C
- Dimensions (L x H x W) / Weight: 160x98x40 mm / 324 g
- The package includes: Power supply: Yes
- Type
- Power Supply
