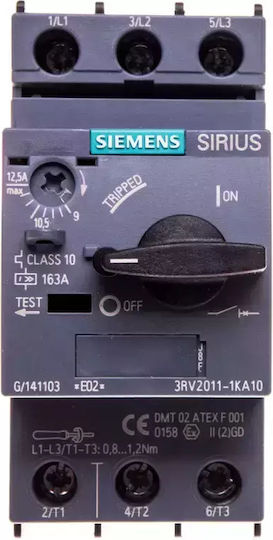

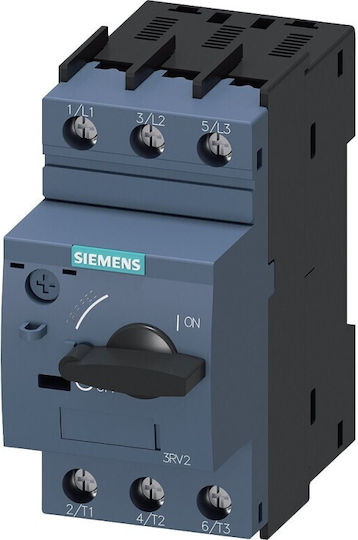

Motor switch 3P 5.5 kW 9-12.5A S00 (3RV2011-1KA10)
- Device construction: permanently installed device
- Phase failure sensitivity: Yes
- Number of poles: 3
- Main circuit connection type: screw connection
- Release method: magnetic
- Degree of protection (IP): IP20
- Overload release setting range [A] up to: 12.5
- Overload release setting range [A] from: 9
- With integrated auxiliary contact: no
- With integrated undervoltage release: no
- Rated operational power at AC-3, 230 V [kW]: 3
- Rated operational power at AC-3, 400 V [kW]: 5.5
- Rated short-circuit breaking capacity Icu at 400 V, AC [kA]: 100
- Rated continuous current Iu [A]: 12.5
