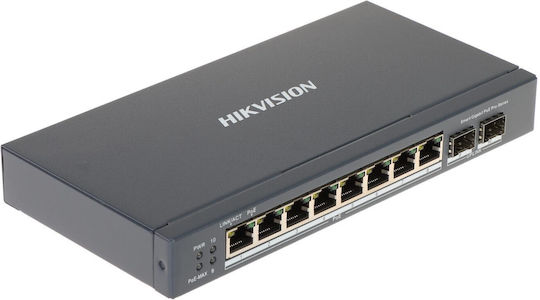

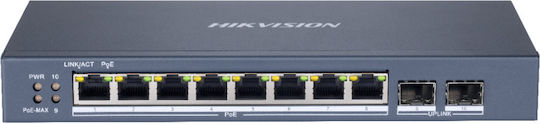

The Hikvision DS-3E1510P-SI managed Layer 2 switch connects IP cameras and devices in small business networks via 8 Gigabit Ethernet RJ-45 ports with PoE+. PoE Watchdog detects unresponsive cameras and restarts them, while Long Range mode transmits PoE up to 300 m in extension mode for -3 series cameras. It supports VLAN, QoS, link aggregation and network monitoring.

The metal enclosure is black. Management features also include port isolation, port mirroring, rate limiting, and broadcast and multicast traffic control.

• Type: Managed Layer 2 PoE+ switch
• Ethernet ports: 8 Gigabit RJ-45 with PoE
• SFP port: 1
• Ethernet port speed: 1000 Mbps
• PoE standards: IEEE 802.3af, IEEE 802.3at
• Total PoE power: Up to 110 W
• Maximum power per port: 30 W
• Switching capacity: 20 Gbps
• Forwarding rate: 14.88 Mpps
• Switching method: Store-and-forward
• MAC address table: 8,000 entries
• VLAN: 802.1Q, up to 4094 VLAN IDs
• QoS: Network traffic prioritization
• Link aggregation: LACP and static aggregation
• Network control: Port mirroring, rate limiting, port isolation, and broadcast and multicast traffic control
• Loop prevention: STP and RSTP
• Network monitoring: SNMPv1 and SNMPv2c
• PoE Watchdog: Detects and restarts unresponsive cameras
• Long Range: PoE transmission up to 300 m in extension mode for -3 series cameras
• PoE port surge protection: 6 kV
• Maximum power consumption: 120 W
• AC input: 100–240 V, 50–60 Hz, 2.5 A
• DC input: 48 V, 2.5 A
• Operating temperature: -10 to 55 °C
• Operating humidity: 5–95%
• Enclosure: Metal, black
• Width: 217.6 mm
• Height: 27.8 mm
• Weight: 1.21 kg
