90° X 90° SILICONE COMPOSITE HYBRID TRACTRIX HORN
The horn loading maximizes efficiency and increases detail by focusing high frequencies towards the listening area. The Tractrix® geometry provides the most efficient transfer of high frequencies to the listening area. The phase plug and compressed silicone ensure smooth frequency response. When combined, they create the clearest and most natural sound.
SECOND GENERATION
- The size of the horn has been increased for a larger soundstage and enhanced directivity.
LINEAR TRAVEL SUSPENSION (LTS) TITANIUM TWEETER
The exclusive linear travel suspension minimizes distortion for enhanced, detailed performance. LTS tweeters are a hallmark of previous Reference series, making them a core component of some of the best speakers in the world.
VENTED TWEETER DESIGN
The vented tweeter design reduces standing waves that create unwanted harmonics, resulting in enhanced detail and clarity in high-frequency reproduction.
CERAMETALLIC WOOFERS – UPDATED DESIGN
A signature feature in the Reference Premiere series, Cerametallic woofers are exceptionally rigid and lightweight for minimal distortion and maximum efficiency. New aluminum rings reduce distortion and increase power handling, while the new motor structure improves transfer response with more control, greater speed, and accuracy.

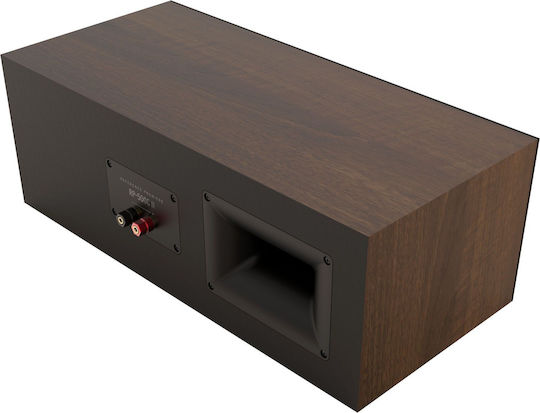

TRACTRIX PORTS
Utilizing Tractrix geometry, the Reference Premiere ports allow for the most efficient and quickest air transfer from the cabinet, reducing port noise for more impactful low frequencies. Klipsch's Tractrix ports feature internal flares specifically designed to reduce air turbulence entering the port.
NEW AND IMPROVED ACCESS
Features audiophile-grade cabling and easily accessible aluminum connections for any type of connection.
MATERIALS AND FURNITURE FINISHES
- Finishes include ebony vinyl and walnut vinyl with scratch-resistant satin paint finishes.

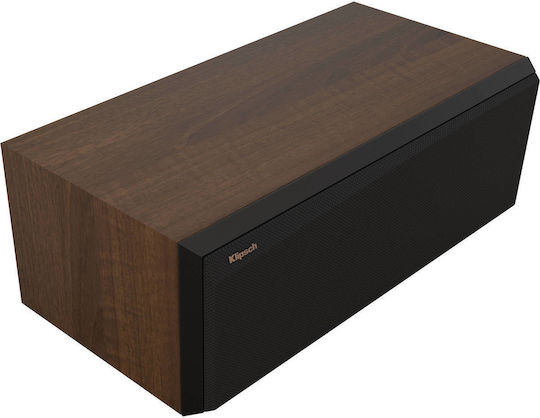

STRONG, FLEXIBLE, REMOVABLE GRILLE
Attaches magnetically for an elegant transition from powerful performance to a discreet presence.
CORK FEET
Cork feet replace rubber dampers for greater stability on stands or tables.
SPECIFICATIONS
- FREQUENCY RESPONSE: 56-25kHz +/- 3dB
- SENSITIVITY: 94dB @ 2.83V / 1m
- POWER HANDLING (CONTINUOUS/PEAK): 100W/400W
- NOMINAL IMPEDANCE: 8 Ohms
- CROSSOVER FREQUENCY: 1 Titanium LTS Vented Tweeter with Hybrid Cross Section Tractrix® Horn
- LOW-FREQUENCY DRIVER: Dual 5.25 Cerametallic Cone Woofers with Faraday Rings
- ENCLOSURE MATERIAL: MDF (Internally Braced)
- ENCLOSURE TYPE: Bass Reflex via Rear-Firing Tractrix® Port
- INPUTS: Single Aluminum Binding Posts
- HEIGHT (mm): 6.87 (17.4 cm)
- WIDTH (mm): 19.34 (49.1 cm)
- DEPTH (mm): 10.58 (26.9 cm)
- FINISH: Ebony, Walnut
- PRODUCT WEIGHT (kg): 8.30kg
- ACCESSORIES: Angle Screw
- Power
- 100 W
- Freequency Range
- 56 - 25000 Hz
- Nominal Impendance
- 8 ohm
- Driver Configuration
- 2.5 No of Drivers
- Placing
- Central
- Bass Driver
- 5.25 "
- Dolby Atmos
- No
- Quantity
- Piece
- Colour
- Brown
- Height
- 17.4 cm
- Width
- 49.1 cm
- Length
- 26.9 cm
