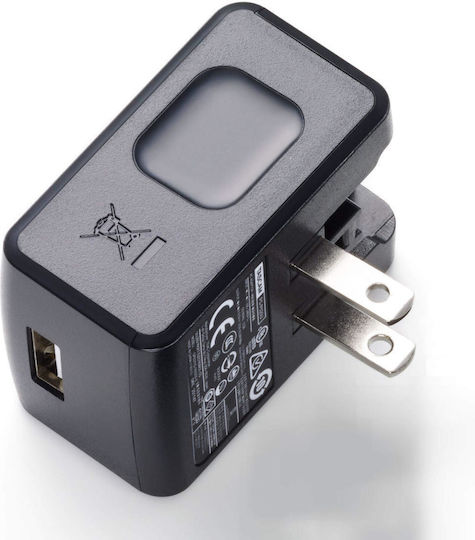

The Tascam PS-P520U power adapter supplies AC/DC power to compatible Tascam devices. It features a USB A output and includes three connection cables: USB A to USB C, USB A to USB micro-B, and USB A to coaxial DC plug.

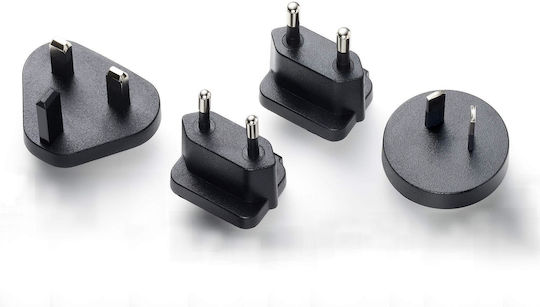

The four interchangeable plugs cover EU, UK, US, and Australian standards. The AC input is 100–240 V, 50/60 Hz, and the DC output is 5 V, 2 A.
- Type: AC/DC power adapter
- Output: USB A
- Input voltage: 100–240 V
- Input frequency: 50/60 Hz
- Output voltage: 5 V DC
- Output current: 2 A
- Plugs: EU, UK, US, Australia
- Connection cables: USB A to USB C, USB A to USB micro-B, USB A to coaxial DC plug
- Dimensions: 38 × 58 × 31 mm
- Weight: 53 g
- Compatible with USB micro-B plug: DR-10C Series, DR-10L, DR-10SG, DR-10X, DR-05X, DR-07X, DR-40X, DR-22WL, DR-44WL, DR-100MKIII, DR-70D, DR-701D, US-1x2, US-1x2HR, US-32, US-42, US-42B
- Compatible with coaxial DC plug: DP-006, DP-008EX, CD-GT2, CD-BT2, CD-VT2, US-2x2, US-2x2HR, DR-100MKII
- Compatible with mini-USB cable: DR-05, DR-07MKII, DR-40, DR-60DMKII, GB-10
- Product Number
- PS-P520U
- Type
- Cables & Plugs
