Description
Specifications

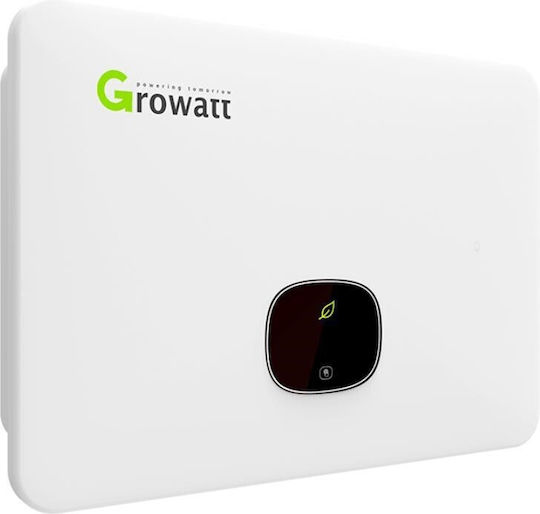

Device: Growatt MID 36KTL3-X
Efficiency: 98.8% maximum efficiency, 98.5% European efficiency
- Maximum AC power: 39,600 VA
- Nominal power: 36,000 W
- Negative value: 60.0 A
- Nominal voltage: 220V/380V, 230V/400V (340-440V)
- MPPT voltage range: 200-1000 V
- Dimensions: 580 x 230 x 435 mm
- Weight: 30.5 kg
- Operating temperature: -25 °C to +60 °C
- Unique features: OLED+LED, RS485, USB
- Optional: WiFi, GPRS, RF, LAN
- Protection: DC reverse polarity, AC/DC surge, AC short-circuit, Anti-islanding
- Certifications: CE, VDE0126, EN50549, IEC62116, IEC61727, etc.
- Protection class: IP66
- Cooling system: Smart air cooling
- Phases: Three-phase
- Frequency: 50/60 Hz (45-55Hz/55-65 Hz)
- Type
- Pure Sine Wave
- Rated power
- 36000 W
- Nominal Input Voltage
- 580 V
- Power supply
- Three-Phase
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
