- Speaker Type: Passive 2-Way Outdoor Speaker (All-Weather Architectural)
- Woofer / Midrange: 6.5" (165 mm) polypropylene cone driver
- Tweeter: 1" (25 mm) aluminium dome tweeter with acoustic lens and HDI (High-Definition Imaging) waveguide
- Recommended Amplifier Power: 20–100W RMS
- Frequency Response (-6dB): 55Hz–25kHz
- Sensitivity: 90 dB (2.83V / 1m)
- Nominal Impedance: 6 Ohms
- Crossover Frequency: 2.5kHz
- Ingress Protection Rating: IP67 (Complete protection against dust and immersion in water; resistant to UV and moisture)
- Mounting Bracket: Includes a wall-mount bracket with a ball-joint mount for precise angle and tilt adjustment.
- Protective Grille: Magnetic, rotatable, with an adjustable logo orientation
- Colour / Finish: Black (Durable black enclosure)
- Dimensions (W x D x H): 221.8 x 218 x 299 mm
- Weight (per unit): 4.9 kg

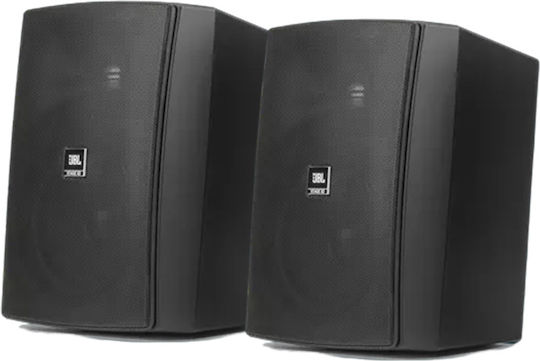

The JBL Stage XD-6 are passive 2-way outdoor speakers (All-Weather Architectural/Outdoor Speakers), designed to deliver high-fidelity Hi-Fi sound in outdoor and indoor spaces such as patios, gardens, pools, shops, and dining areas. They feature a 6.5-inch (165 mm) low- and mid-frequency transducer with a polypropylene cone and rubber surround, as well as a 1-inch (25 mm) aluminum tweeter mounted in the patented High-Definition Imaging (HDI®) waveguide. The durable enclosure, made of reinforced polymer material, features a sealed IP67-rated construction for protection against water, dust, and UV radiation, and comes with swivel wall-mount brackets.
Basic Features
- Speaker Type: Passive 2-Way Outdoor Speaker (All-Weather Architectural)
- Woofer / Midrange: 6.5" (165 mm) polypropylene cone driver
- Tweeter: 1" (25 mm) aluminium dome tweeter with acoustic lens and HDI (High-Definition Imaging) waveguide
- Recommended Amplifier Power: 20–100W RMS
- Frequency Response (-6dB): 55Hz–25kHz
- Sensitivity: 90 dB (2.83V / 1m)
- Nominal Impedance: 6 Ohms
- Crossover Frequency: 2.5kHz
- Ingress Protection Rating: IP67 (Complete protection against dust and immersion in water; resistant to UV and moisture)
- Mounting Bracket: Includes a wall-mount bracket with a ball-joint mount for precise angle and tilt adjustment.
- Protective Grille: Magnetic, rotatable, with an adjustable logo orientation
- Colour / Finish: Black (Durable black enclosure)
- Dimensions (W x D x H): 221.8 x 218 x 299 mm
- Weight (per unit): 4.9 kg
Acoustic Architecture & High-Definition Imaging (HDI) Waveguide

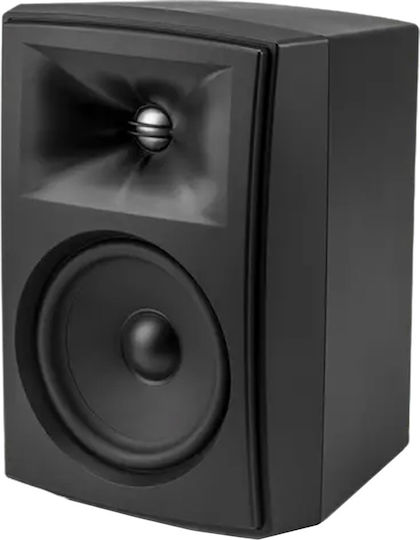

The JBL Stage XD-6 features a 6.5-inch (165 mm) midrange and bass driver with a graphite-filled polypropylene cone, delivering tight bass response from 55 Hz and clear vocal reproduction. For high frequencies up to 25 kHz, the speaker is equipped with a 1-inch (25 mm) aluminum tweeter paired with JBL’s patented High-Definition Imaging (HDI) waveguide. This technology optimizes sound dispersion in open spaces and maintains a consistent acoustic balance both on and off the listening axis.
Weather Resistance & IP67 Certification
Designed for long-term use outdoors, these speakers feature a sealed enclosure with an IP67 rating. This construction provides complete protection against dust, water, heavy rain, and moisture, while the black exterior has a special UV-resistant coating to prevent discoloration and material degradation.
Flexible Installation & Rotating Logo

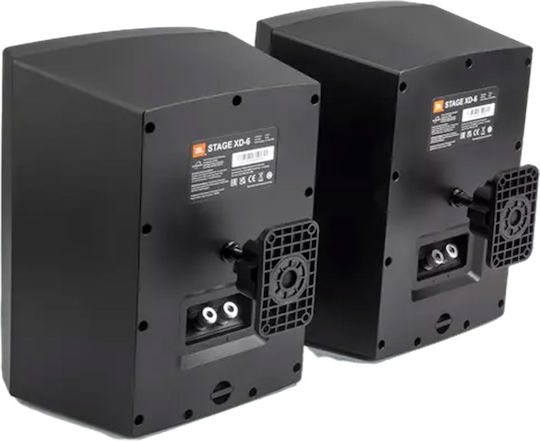

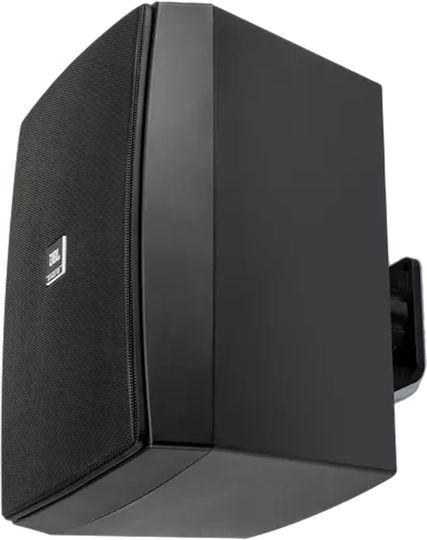

The Stage XD-6 speakers come with ball-joint wall brackets, which allow easy adjustment of the tilt angle and horizontal or vertical rotation. In addition, the protective magnetic grille features a rotatable JBL logo, allowing the speaker to blend seamlessly with its surroundings regardless of its mounting orientation.
- Product Number
- JBLXD6BLK
Technical Specifications
- Power (RMS)
- 100 W
- Freequency Range
- 55 - 25000 Hz
- Driver Configuration
- 2 No of Drivers
- Nominal Impendance
- 6 ohm
- Sensitivity
- 88 dB
Main Specifications
- Placing
- Outdoor, Wall
- Quantity
- Pair
- Colour
- Black
- Functionality
- Active
- IP Protection Rating
- -
- Mounting Bracket
- -
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
