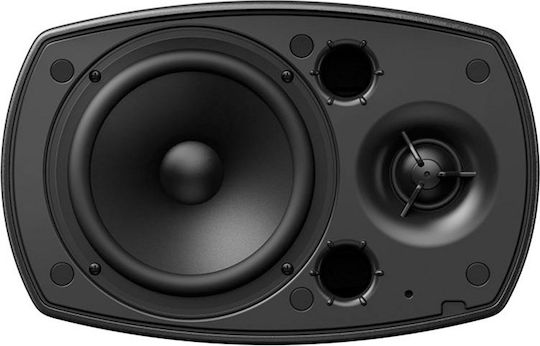

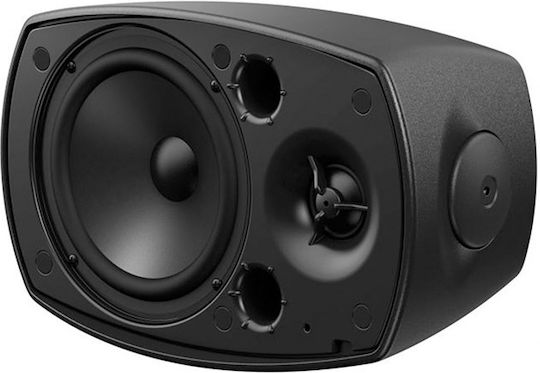

The Pioneer CM-S54T-K pair of passive wall-mounted speakers features a two-way design with a 4.5-inch cone woofer and a 1-inch soft-dome tweeter. The ribbed bass-reflex port helps ensure airflow without distortion. Their dispersion is 120° horizontal × 120° vertical.

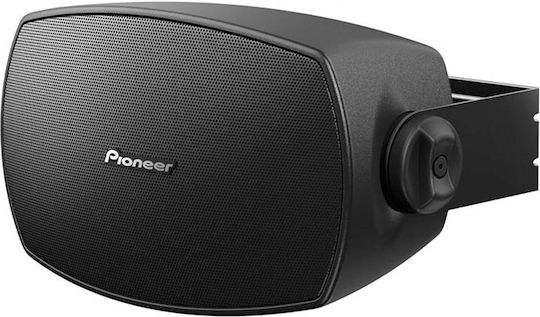

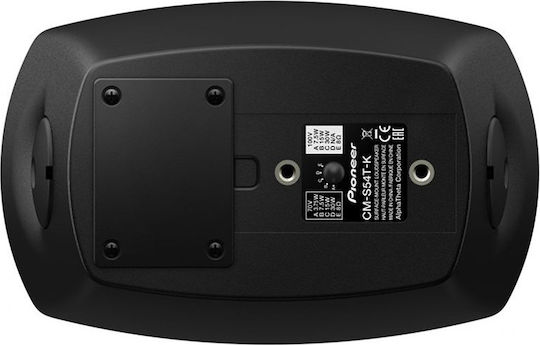

The speakers have built-in transformers with power taps for 70 V and 100 V line systems, as well as a 4-pin Euroblock connector for signal input and pass-through. The enclosure is made of PP, and the grille is made of aluminum. A U-bracket for wall mounting is included. There are also two threaded M6 mounting points on the rear, with holes spaced 60 mm apart.
- Type: Two-way passive speakers with bass-reflex loading
- Mounting: Wall-mounted
- Quantity: Pair
- RMS power: 40 W
- Power handling: 80 W
- 70 V transformer taps: 30 W, 15 W, 7.5 W, 3.75 W
- 100 V transformer taps: 30 W, 15 W, 7.5 W
- Frequency response: 95 Hz–20 kHz
- Sensitivity: 87 dB (1 W/1 m)
- Impedance: 8 Ω
- Maximum sound pressure level: 109 dB (peak)
- Dispersion: 120° horizontal × 120° vertical
- Woofer: 4.5-inch (114 mm) cone
- Tweeter: 1-inch (25 mm) soft dome
- Connection: 4-pin Euroblock, signal input and pass-through
- Enclosure: PP
- Grille: Aluminum
- Mounting bracket: U-bracket
- Mounting points: 2 rear M6 threaded points
- Rear mounting hole spacing: 60 mm
- Protection rating: IP54
- Color: Black
- Height: 15.49 cm
- Length: 25.06 cm
- Depth: 14.45 cm
- Weight per speaker: 3.4 kg
- Product Number
- CM-S54T-K
Technical Specifications
- Power (RMS)
- 40 W
- Freequency Range
- 95 - 20000 Hz
- Driver Configuration
- 2 No of Drivers
- Nominal Impendance
- 8 ohm
- Sensitivity
- 87 dB
Main Specifications
- Placing
- Wall
- Quantity
- Pair
- Colour
- Black
- Functionality
- Passive
- IP Protection Rating
- IP54
- Mounting Bracket
- Yes
Dimensions
- Height
- 15.49 cm
- Length
- 25.06 cm
- Length
- 14.45 cm
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
