Performance
- Suitable for rooms
- Type: Air cooler
- Fan diameter: 120mm
- Supported processor sockets: LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5
- Rotation speed (min): 500RPM
- Rotation speed (max): 1800RPM
- Noise level (low speed): 17.9dB
- Noise level (high speed): 30.6dB
- Minimum airflow: 21.67cfm
- Maximum airflow: 78.02cfm
- Minimum air pressure: 0.75mmH2O
- Maximum air pressure: 2.7mmH2O
- PWM (Pulse Width Modulation) support: YES
- Bearing type: Fluid Dynamic Bearing (FDB)
- Quantity per package: 1 piece
- MTBF rating: 60000h
Design
- Product color: White
- Base plate material: Copper
- Number of fans: 1 fan

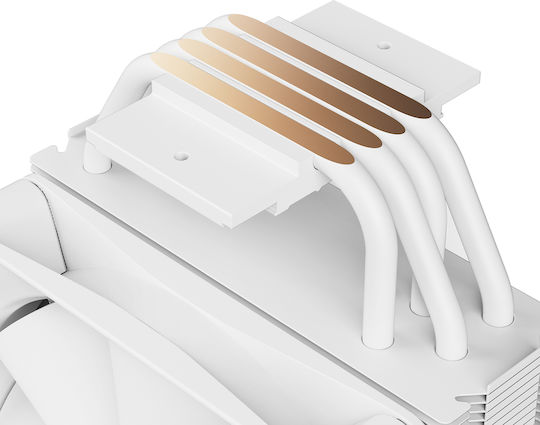

- Number of heat pipes: 4
- Fan connector: 4-pin
Power Management
- Voltage: 12V
- Fan power consumption: 2.76W
- Rated current line: 0.23A
Weight and Dimensions
- Width: 66mm
- Depth: 159mm
- Height: 120mm
- Fan dimensions (W x D x H): 120 x 120 x 26mm
Package Contents
- Mounting kit: YES
- Thermal pad included: YES
Main Specifications
- Type
- Active
- Socket
- 1150/1151/1155/1156, 1200, 1700, AM4, AM5
- Dual Fan
- No
- Colour
- White
Technical Specifications
- Minimum Noise Level
- 30.6 dB
- RPM (Full Load)
- 1800 rpm
- Thermal Design Power (TDP)
- -
Dimensions
- Width
- 120 mm
- Length
- 66 mm
- Height
- 159 mm
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
