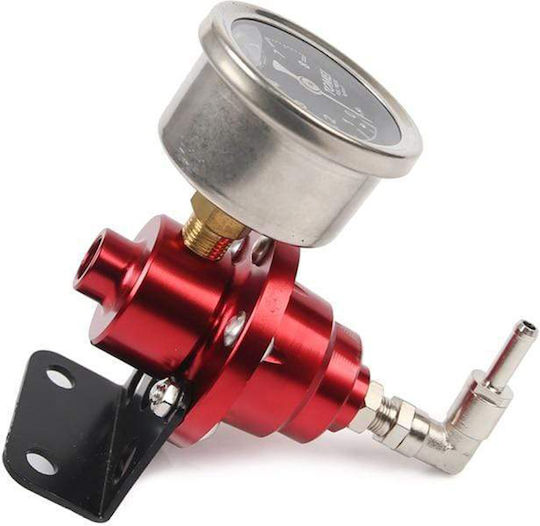

The DS-28256 analog automotive fuel pressure gauge features a red faceplate and a 33 mm diaphragm. The regulator body is made of hard-anodized aluminum, and the pressure adjustment range is 2.0 to 8.0 kgf/cm².
- Type: Analog gauge
- Readings: Fuel pressure
- Faceplate color: Red
- Model: S
- Body material: Aluminum
- Finish: Hard anodized
- Diaphragm diameter: 33 mm
- Pressure adjustment range: 2.0–8.0 kgf/cm²
- Weight with bracket: 155 g
- Connections: AN6, 1/8NPT, #8 straight
- Fuel inlets: Bottom and side 1/8NPT inlets
- Fuel outlet: Bottom 1/8NPT connection
Manufacturer
OEM- Type
- Analog Instruments
- Functions
- Fuel Pressure
- Carbon Type
- No
- Plate Color
- Red
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
