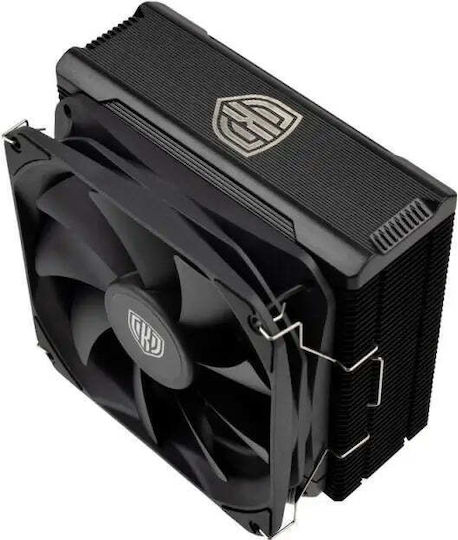

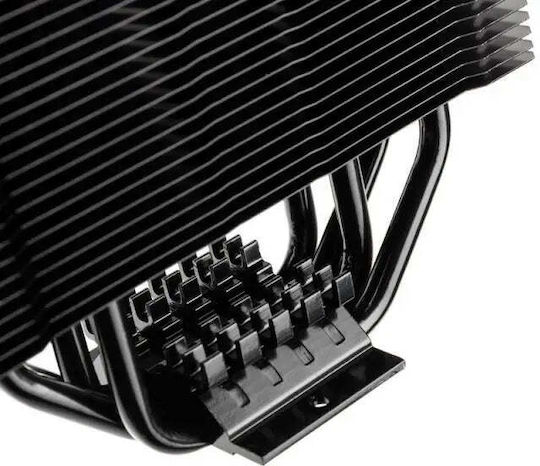

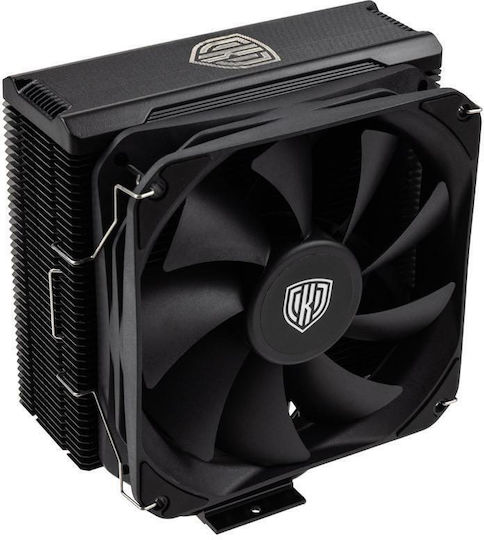

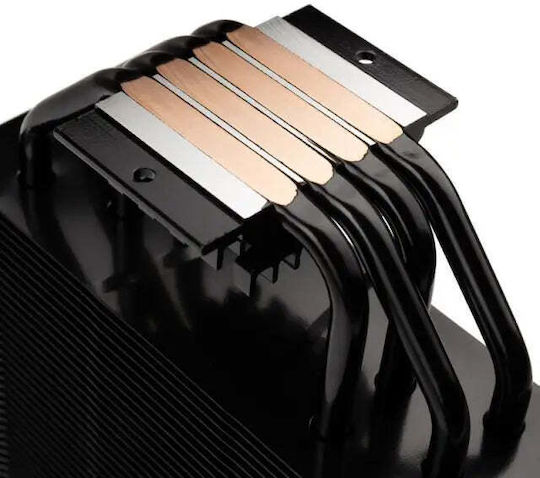

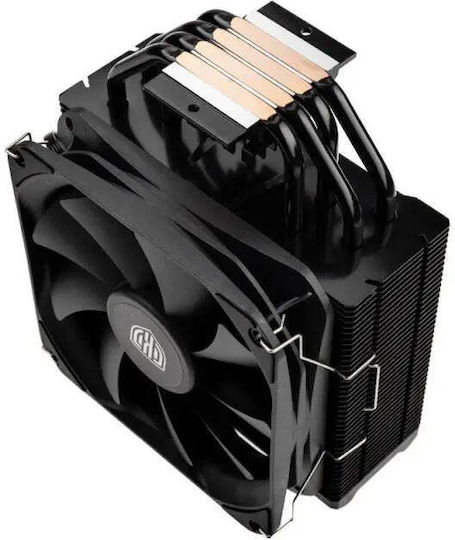

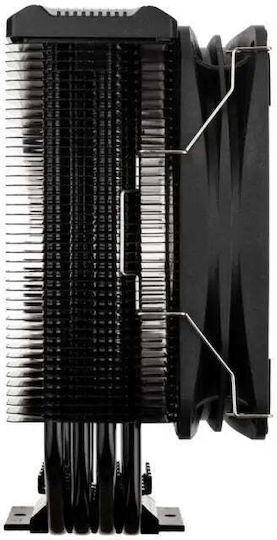

The Kolink Umbra EX180 CPU cooler uses four 6 mm copper heat pipes integrated into an aluminum base, along with a 120 mm PWM fan for active cooling of processors with a TDP of up to 180 W. The fan operates at 800–1800 rpm, delivering airflow of up to 73.6 CFM and static pressure of 2.12 mm H₂O.

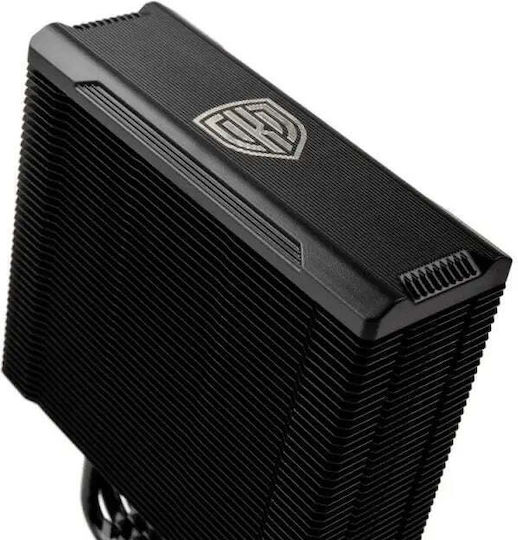

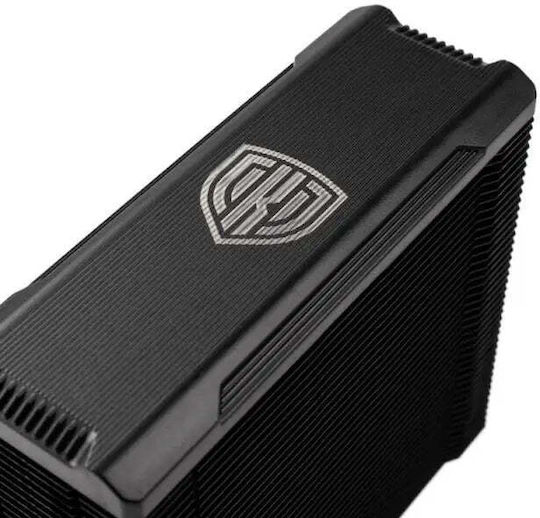

Its slim design leaves room for RAM modules of different sizes and shapes. The components have a matte black finish, while the aluminum parts have been treated with a black electrophoretic surface coating. The package includes thermal paste with a thermal conductivity of 12.8 W/(m·K).
- Cooling type: Active
- Heat pipes: 4 copper, 6 mm in diameter
- Fan: 120 mm PWM
- Fan speed: 800–1800 rpm
- Airflow: Up to 73.6 CFM
- Static pressure: 2.12 mm H₂O
- Noise level: Up to 28.6 dBA
- TDP: Up to 180 W

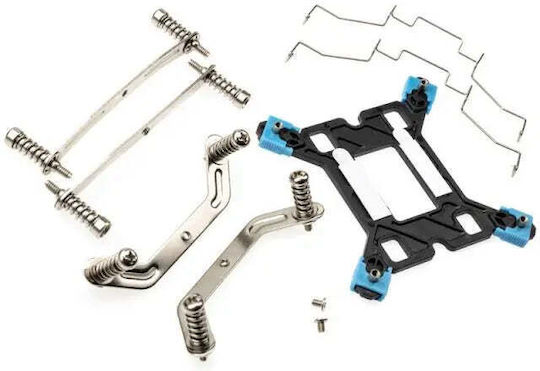

- Compatibility: AMD AM4, AM5, Intel 1150, 1151, 1155, 1156, 1200, 1700, 2011
- Base material: Aluminum
- Color: Black
- Dimensions: 130 × 75 × 157 mm
- Package contents: Thermal paste with a thermal conductivity of 12.8 W/(m·K)
Main Specifications
- Type
- Active
- Socket
- 1150/1151/1155/1156, 1200, 1700, 2011, AM4, AM5
- Dual Fan
- No
- Colour
- Black
Technical Specifications
- Minimum Noise Level
- 28.6 dB
- RPM (Full Load)
- 1800 rpm
- Thermal Design Power (TDP)
- 180 W
Dimensions
- Width
- 130 mm
- Length
- 75 mm
- Height
- 157 mm
