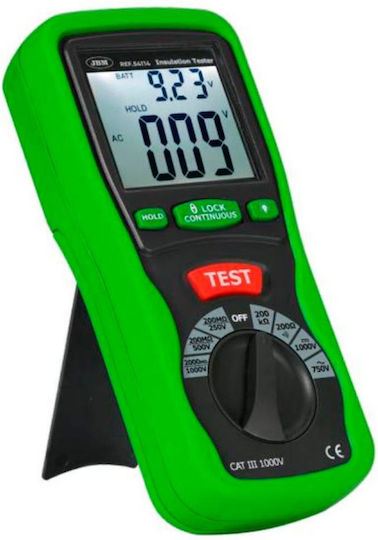

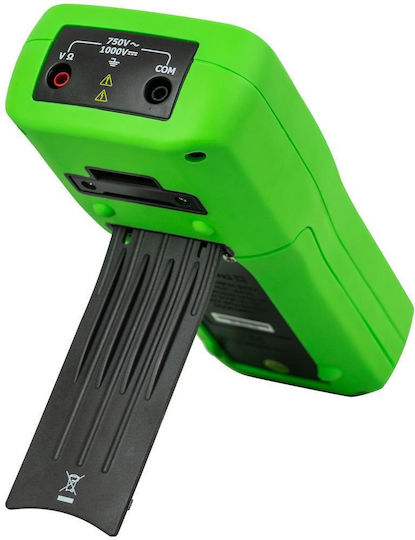

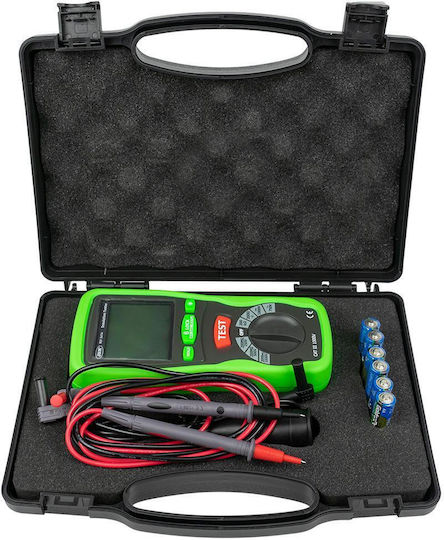

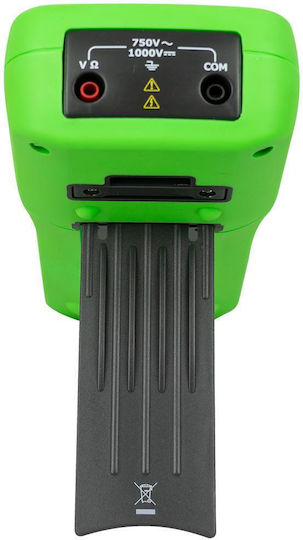

JBM Digital Insulation Meter 54114

This instrument helps measure electrical insulation at specified voltages (250V, 500V, or 1000V). It is a necessary tool for assessing the integrity of an electrical circuit, particularly to ensure...

This instrument helps measure electrical insulation at specified voltages (250V, 500V, or 1000V). It is a necessary tool for assessing the integrity of an electrical circuit, particularly to ensure that the components and installation in electric vehicles are completely isolated from the chassis.

In industrial facilities, it is the tool that allows for the...

See full description See full description
276 21
277 Coins 277 Coins
Delivery Tue, 25 Aug - Thu, 27 Aug
Free shipping cost
Sent from Greece
From KouzouloglouSA
Greece
1 piece
See Voltage / Cable Testers on the page of KouzouloglouSA
What if it breaks?

You're covered by the statutory 2-year warranty. Contact us and we'll handle the entire process with the store, ensuring your issue is resolved with prompt support through a repair, replacement, or refund.

What if I change my mind?

No problem, as long as it's within 14 days. We'll come pick it up or you can choose the Skroutz Point that suits you, completely free for up to 2 times per year, and we'll refund your money. Get Skroutz Plus to enjoy unlimited free returns.

Learn more about invoicing

Description

Description

This instrument helps measure electrical insulation at specified voltages (250V, 500V, or 1000V). It is a necessary tool for assessing the integrity of an electrical circuit, particularly to ensure that the components and installation in electric vehicles are completely isolated from the chassis.

In industrial facilities, it is the tool that allows for the periodic inspection of insulation resistance. Measurements are required by the regulation DIN VDE 0105-100 (VDE 0105-100):2009-10. It is particularly recommended for use in electric and hybrid vehicles.

  • Installation category: 2
  • Measurement category: CAT III
  • Altitude: Up to 2000 meters
  • Display: LCD with dual display
  • AC Voltage: 0 – 750V
  • DC Voltage: 0 – 1000V
  • Resistance: 0 - 200Ω / 200 - 2000Ω
  • Insulation Resistance: 0 – 200MΩ / 200 – 2000MΩ
  • Sampling Frequency: 2.5 times per second
  • Zero Adjustment: Automatic adjustment
  • Operating Temperature: 0 - 40°C
  • Storage Temperature: -10°C – 60°C
  • Power Source: DC9V (6x1.5V AA type batteries)
  • Dimensions (L x W x H): 200 x 92 x 50mm

Manufacturer

See full description

Specifications

Specifications

Type
Insulation Meter
Digital
Yes
Insulation Test Voltage
-
Analog
No
