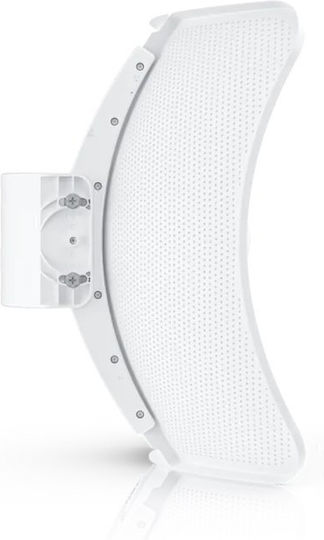

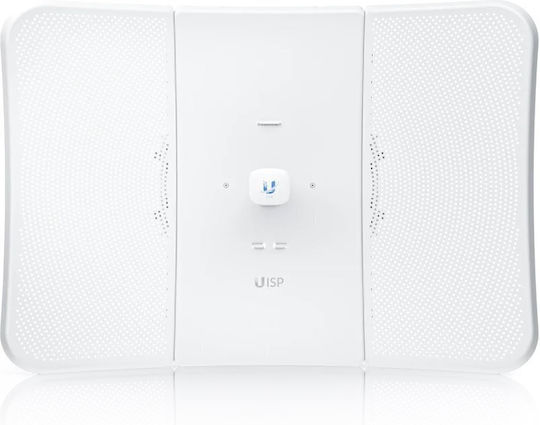

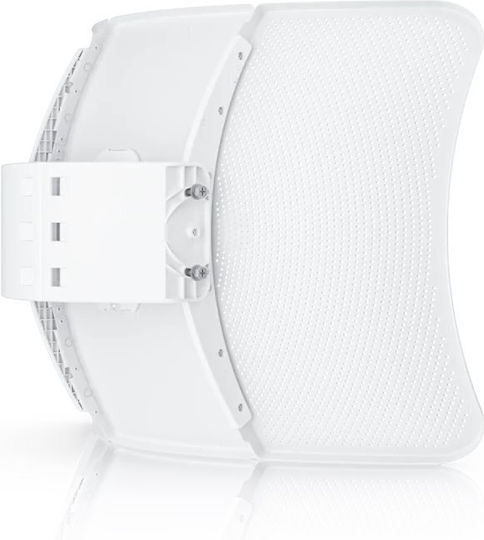

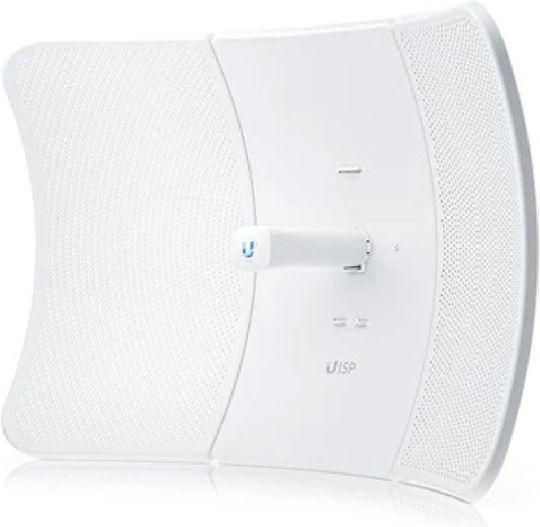

UBIQUITI PtMP CPE LTU-XR, 550 Mbps, 5GHz, IPX6

Το LTU-XR είναι ένα υψηλής απόδοσης Point-to-Multipoint (PtMP) CPE για ασύρματους ISPs που μπορεί να φτάσει σε ταχύτητα ροής έως και 550 Mbps. Επιπλέον, διευκολύνει την ανεξάρτητη μετάδοση και λαμβάνει channel frequency configurations οπουδήποτε εντός του radio band για να αποφευχθούν οι τοπικές παρεμβολές και να εξασφαλιστεί ανώτερη απόδοση.

• Proprietary Ubiquiti LTU core processor
• Long-range, 29 dBi antenna with InnerFeed technology
• High data and performance rate (1024 QAM)
• Link range up to 35 km
• Channel width flexibility (10/20/30/40/50 MHz bandwidth)
• Central configuration management from the AP side
• Frequency splitting
• Router mode support
• Integrated GPS
• Link planning support via ISP Design Center
• Quick, Bluetooth-powered setup with the UISP Mobile app

Τεχνικά χαρακτηριστικά

• Hardware Networking interfaces: (1) GbE RJ45 port
• Button: Factory reset
• LEDs: Power/ethernet
• RF connections: Internal
• Max. power consumption: 8.5W
• Power method: Passive PoE 2-pair (4, 5+; 7, 8-)
• Power supply: 24VDC, 0.5A Gigabit PoE adapter (included)
• Supported voltage range: 22 to 26VDC
• Operating temperature: -40 to 55°C
• Operating humidity: 5 to 95% non-condensing
• System Maximum throughput: 550 Mbps
• Encryption: WPA2-PSK (AES)
• Uplink/downlink ratio: 25/75, 33/67, 50/50
• Software OS: airOS®
• Modes: PtMP CPE only
• Services: SNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog
• Utilities: airView®, speed test, alignment, discovery, ping, traceroute, cable test, constellation
• Auto distance adjustment: Yes
• Auto power adjustment: Yes
• Network: Router mode
• Security: Yes
• Statical reporting: Yes
• Management interface: Bluetooth management for easy setup over UISP App, WEB UI
• Minimum software requirements: Modern Web browser or Android/iOS smartphone
• RF Operating frequency*: 5.15 to 5.95 GHz
• Max. conducted TX power: 25 dBm
• Channel bandwidth: 10/20/30/40/50 MHz
• Antenna Gain: 29 dBi
• Isolation: 20 dB
• Beamwidth: HPOL: 3 dB: 5.5°, 6 dB: 7.5°, VPOL: 3 dB: 5.5°, 6 dB: 7.5°, Elevation: 3 dB: 5.5°, 6 dB: 7.5°
• Electrical downtilt: 0°
• Mechanical Dimensions: 747 x 525 x 347 mm
• Weight: 3.2 kg (7.06 lb)
• Enclosure materials: Aluminum alloy, UV stabilized polycarbonate
• Mount material: UV stabilized polycarbonate
• Mount: Integrated pole mount (included), Pole compatibility: Φ35-60 mm
• Wind loading: 1100 N at 200 km/h (247.29 lbf at 125 mph)
• Weatherproofing: IPX6
• Reflection panels
• Pivot panels
• LTU XR InnerFeed
• Rear housing
• Mounting bracket
• Hardware kit
• Metal straps
• Gigabit PoE adapter (24V, 0.5A)
