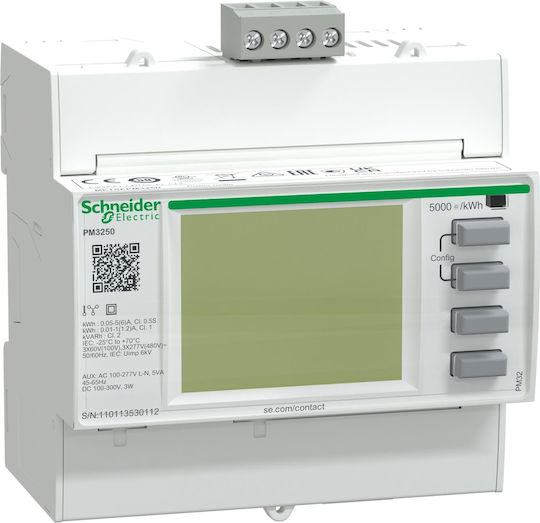

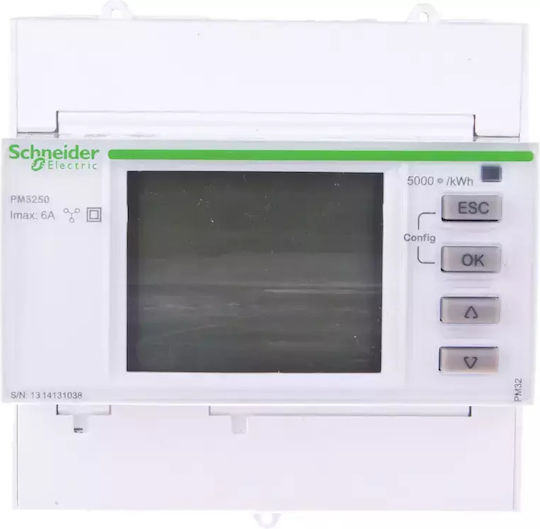

Schneider Electric PM3250 Digital Electric Panel Meter Energy Analyzer Rail Three-phase Modbus
Electric Panel Meters

Schneider Electric PM3250 Digital Electric Panel Meter Energy Analyzer Rail Three-phase Modbus

Network Parameter Analyzer from the PowerLogic series.

Product Name: PowerLogic PM3001

Features:

  • Power quality analysis up to the 15th harmonic
  • Applications: power monitoring, multi-zone measurement,...

Network Parameter Analyzer from the PowerLogic series.

Product Name: PowerLogic PM3001

Features:

  • Power quality analysis up to the 15th harmonic
  • Applications: power monitoring, multi-zone measurement, and intermediate billing
  • Measurements: energy, active and reactive power, total harmonic distortion of current THD(i), total harmonic distortion of voltage...
See Description & Specifications See Description & Specifications

Top specs

  • Connectivity Modbus

  • Maximum Current Intensity

    The maximum electric current in Amperes (A) that the instrument can safely measure in the electrical panel.
What if it breaks?

You're covered by the statutory 2-year warranty. Contact us and we'll handle the entire process with the store, ensuring your issue is resolved with prompt support through a repair, replacement, or refund.

What if I change my mind?

No problem, as long as it's within 14 days. We'll come pick it up or you can choose the Skroutz Point that suits you, completely free for up to 2 times per year, and we'll refund your money. Get Skroutz Plus to enjoy unlimited free returns.

Learn more about invoicing
Questions
Review the product
Product report

Description & Specifications

Network Parameter Analyzer from the PowerLogic series.

Product Name: PowerLogic PM3001

Features:

  • Power quality analysis up to the 15th harmonic
  • Applications: power monitoring, multi-zone measurement, and intermediate billing
  • Measurements: energy, active and reactive power, total harmonic distortion of current THD(i), total harmonic distortion of voltage THD(i), voltage, current, frequency, power factor, apparent power
  • Nominal supply voltage [Us]: 100...300 V DC, 100...277 V AC (45...65 Hz), 173...480 V AC (45...65 Hz)
  • Network frequency: 50 Hz, 60 Hz
  • Rated current [In]: 1 A, 5 A
  • Poles: 3P, 1P + N, 3P + N
  • Power consumption: 5 VA
  • Display: LCD with backlight, 128 x 96 pixels
  • Sampling rate: 32 samples/cycle
  • Measurement current: 0.02...1.2 A, 0.05...6 A
  • Analog input: current 0...5 A, current 0...1 A
  • Measured voltage: 50...330 V AC (45...65 Hz), 80...570 V AC (45...65 Hz), 570...999,000 V AC (45...65 Hz) with external VT
  • Frequency measurement range: 45...65 Hz
  • Inputs/outputs: 0/0
  • Measurement accuracy: 0.003 current (0.5...6 A), 0.005 current (0.1...1.2 A), 0.003 voltage (50...330 V), 0.003 voltage (80...570 V)
  • Accuracy classes: Class 0.5S, Class 2, Class 1, Class C
  • Displayed information: tariff 4
  • Communication: Modbus, 9.6...38.4 kbaud, RS485 port
  • Data logging: timestamped recordings, 5 alarms, minimum/maximum instantaneous values
  • Mounting: plug-in, DIN rail
  • Standards: UL 61010-1, IEC 61557-12, IEC 62052-11, EN 50470-3, EN 61010-1, EN 50470-1, EN 61557-12
  • Certifications: CULus, ULCE
  • Dimensions: width 90 mm, depth 70 mm, height 95 mm
  • Weight: 0.26 kg
  • Electromagnetic compatibility: conduction and radiation emissions class B, ESD level 4, RF conducted interference level 3
  • Overvoltage category: III
  • Protection degree IP: IP20 (housing), IP40 (front panel)
  • Relative humidity: 5...95 % at 50 °C
  • Pollution degree: 2
  • Operating temperature: -25...55 °C
  • Storage temperature: -40...85 °C
  • Operating altitude: 0...3000 m

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Type
Energy Analyzer
Display Type
Digital
Installation Type
Rail
Number of Phases
Three-phase
Maximum Current
2 A

Maximum Current

The maximum electric current in Amperes (A) that the instrument can safely measure in the electrical panel.

Smart Features

Connectivity
Modbus
