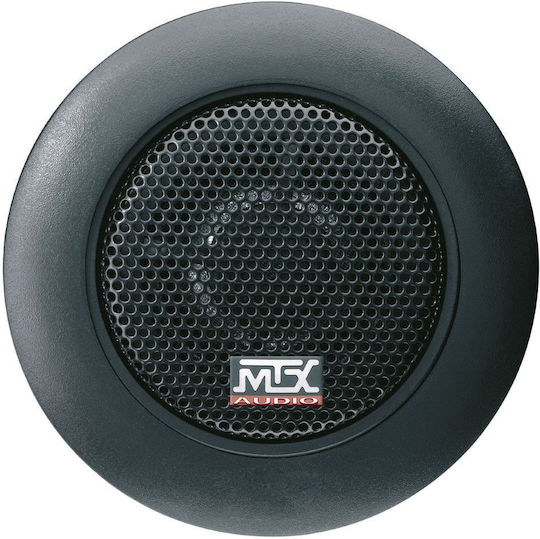

MTX TX225T Tweeters
The MTX TX225T are 25mm tweeters that specialize in reproducing high frequencies.
They are the tweeters of the MTX TX250S and TX265S sound systems. They handle 65W RMS and 450W Peak with 4 impedance, making them easily integrated with any external or built-in amplifier.
Their small external diameter makes them easy to install anywhere: behind mirrors, on the dashboard, or at the top of doors. To make the most of their capabilities, they should be placed as high as possible to achieve the widest sound stage.
Their sound quality is excellent, reproducing details accurately and offering intensity in music playback. The large diameter of their dome allows for a powerful and impressive sound.
The silk dome is the best solution for perfect sound distribution, reducing directivity. The sound can be heard very well from both sides of the car.
To maintain compact design and power handling capability, supermagnetic neodymium magnets are used, making installation easy.

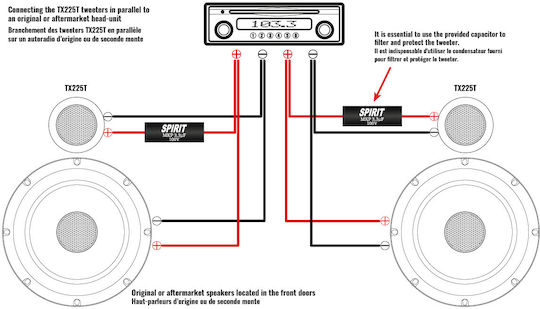

Two capacitors are included for filtering. It is a simple and effective solution.
- Features:
- 25mm tweeters with large diameter for power and performance.
- Silk dome for smoothness and reduction of directivity.
- Super powerful neodymium magnet for more power and easy installation.
- Passive x-over with two capacitors for filtering, protection, and musicality.
- When installed behind mirrors or on the dashboard, they highlight the sound stage impressively.
Specifications:
- Silk dome tweeter
- Neodymium magnet
- Diameter 25mm
- Maximum power 450W
- RMS power 65W
- Sensitivity 91.5dB (2.83v, 1m)
- Impedance 4
- Frequency response 1500Hz - 25000Hz

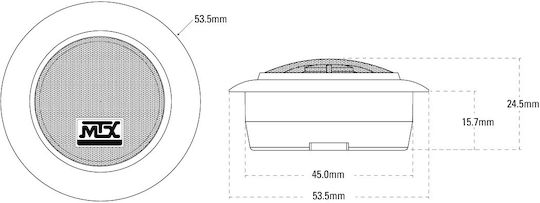

- Depth 15.7mm
- Cutout diameter 45mm
- External diameter 53.5mm
- X-over 6dB Oct with polypropylene capacitor
- Product Number
- TX225T
Dimensions
- Type
- 4 Way
- Shape
- Round
Technical Specifications
- Peak Power
- 450 W
- Power (RMS)
- 65 W
- Nominal Impendance
- 4 ohm
