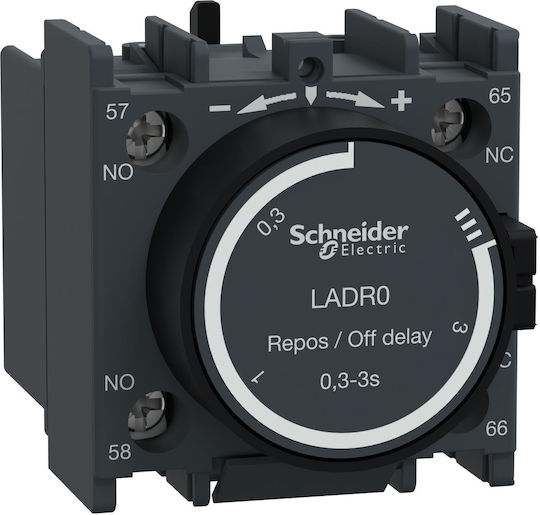

Delay block contact Switch 0.1-3s 1NC/1NO LC1 LADR0
- Number of contacts: 1
- Number of stop contacts: 1
- Terminals: screw
- Electrical connection: Cable 1 - 2.5 mm² with/without tip
- Installation position: front
- Operating voltage: 690 V AC, 25 - 400Hz
- Thermal current: 10A
- Type of protection: fuse gG
- Minimum deactivation current: 5mA
- Minimum deactivation voltage: 17V
- Time without signal: 1.5 ms during deactivation/activation
- Timer type: deactivation delay
- Delay range: 0.1 - 3 seconds
- Ambient temperature for operation: -5 - 60°C
- Type
- Timer Relay
