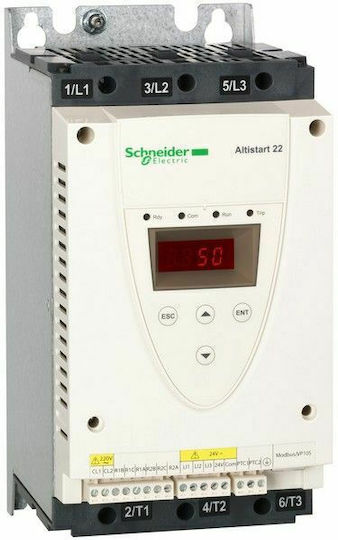

The Schneider Electric ATS22D47Q industrial starter is a three-phase Altistart soft starter with a rated current of 47 A. It controls torque during motor starting and supports Modbus communication via an RJ45 connection.
- Phases: 3
- Supply voltage: 230–440 V
- Frequency: 50 / 60 Hz
- Rated current: 47 A
- Motor power at 400 / 440 V: 22 kW
- Motor power at 230 V: 11 kW
- Power losses: 48 W
- Utilization category: AC-53A
- Degree of protection: IP 20
- Control circuit voltage: 220–230 V
- Communication port: Modbus
- Connection type: RJ45
- Operating position: Vertical ± 10°
- Height: 265 mm
- Width: 130 mm
- Depth: 169 mm
- Type
- Starter
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
