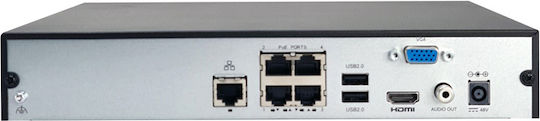

Uniarch DVR NVR NVR-104E2-P4
Surveillance Video Recorders

Uniarch DVR NVR NVR-104E2-P4

The Uniarch NVR-104E2-P4 NVR recorder supports connecting up to 4 cameras via PoE and recording at resolutions of up to 8 MP. It decodes Ultra 265, H.265 and H.264 video, while the HDMI and VGA...

The Uniarch NVR-104E2-P4 NVR recorder supports connecting up to 4 cameras via PoE and recording at resolutions of up to 8 MP. It decodes Ultra 265, H.265 and H.264 video, while the HDMI and VGA outputs can operate simultaneously. It supports the ONVIF protocol and a hard drive with a capacity of up to 6 TB.

  • Type: PoE NVR
  • Channels: 4
  • Recording resolution: Up...
See full description See full description

Top specs

  • Type

    NVR

    Recorder that uses IP cameras and network connection for video recording and management.

  • Number of Channels

    The maximum number of cameras that can be connected to and managed by the recorder

  • Resolution

    4K

    The highest resolution available on the market (also known as 8 Megapixels). It offers 4 times more detail than Full HD. This is cinematic quality that allows for maximum possible zoom to recognize critical details, even from a great distance.

  • Incoming Bandwidth

    This is the actual processing power of the recorder. It determines how much "load" (data) it can handle simultaneously from all cameras. A high number is necessary for many channels at high 4K resolution.


    • Example 1: You have 4 cameras of 5MP (each requiring ~8 Mbps). A total of ~32 Mbps is required. An NVR with 80 Mbps Incoming Bandwidth is more than enough.
    • Example 2: You have 16 cameras of 4K (each requiring ~12 Mbps). A total of ~192 Mbps is required. An NVR with 160 Mbps is not enough and will "lose" cameras or reduce their quality. Here, you need an NVR with at least 256 Mbps.

    40

  • HDD Slots

    The number of internal hard drives (SATA) that can be installed simultaneously in the recorder.

  • Maximum Capacity per Disk

    The maximum size (in TB - Terabytes) of the hard drive that the device "recognizes" and supports in each slot.

  • ONVIF

    ONVIF is a protocol that allows cameras and recorders from different manufacturers to communicate with each other.

  • Ports

    PoE

    These ports allow you to connect IP cameras directly to the recorder. The camera receives power and transmits video through the same network cable, making installation extremely simple (plug-and-play).

    VGA

    An analog video output. Used to connect the recorder to older computer monitors.

    HDMI

    The digital output for video and audio. It is the standard way to connect the recorder to a modern TV or monitor (PC) and view your cameras in high resolution.

    Alarm Input

    Physical ports (terminals) that allow external sensors (e.g., door magnetic contact, radar) to send a "command" to the recorder (e.g., "The door just opened, start recording or send a notification").

    Alarm Output

    Physical ports (terminals) that allow the recorder to give a "command" to external devices. For example, "As soon as I detect a person, activate an external siren or turn on the lights."

    USB

    Its main use is to connect a mouse for menu navigation and settings. Additionally, it is used to connect a USB stick (flash drive) in order to export (take a backup of) specific video clips that interest you.
  • See all
77 24 €
You earn a 10,00 € coupon
for your next purchase

Deals & Benefits

Κέρδισε κουπόνι 10€ με αγορά μέσω App!

Το θέλεις; Θα το ‘χεις! Κάνε μια παραγγελία άνω των 50€ από το Skroutz App μέσα στο ΣΟΥΚΟΥ και κέρδισε κουπόνι 10€ για την επόμενη παραγγελία σου άνω των 50€.

Η προσφορά ισχύει μέχρι την Κυριακή, 01/11, γι' αυτό βιάσου.

  • Απαραίτητη προϋπόθεση είναι η αγορά μέσω του Skroutz App.
  • Το κουπόνι 10€ ισχύει για μία (1) παραγγελία συνολικής αξίας προϊόντων άνω των 50€ με διεύθυνση αποστολής στην Κύπρο.
  • Το κουπόνι αποδίδεται αμέσως μετά την ολοκλήρωση της παραγγελίας με διάρκεια 5 ημέρες από την ημερομηνία απόδοσής του.

Terms & conditions apply
Delivery Friday, 06 November
3,50 € to a Skroutz Point or 4,50 € to an address
Do you want it with Free shipping?
Sent from Greece
From Shop404 5.0 (7)
5.0 (7 reviews)
Greece
10 pieces
See CCTV Systems on the page of Shop404
What if it breaks?

You're covered by the statutory 2-year warranty. Contact us and we'll handle the entire process with the store, ensuring your issue is resolved with prompt support through a repair, replacement, or refund.

What if I change my mind?

No problem, as long as it's within 14 days. We'll come pick it up or you can choose the Skroutz Point that suits you, completely free for up to 2 times per year, and we'll refund your money. Get Skroutz Plus to enjoy unlimited free returns.

Learn more about invoicing
Review the product
Product report

Description

Description

The Uniarch NVR-104E2-P4 NVR recorder supports connecting up to 4 cameras via PoE and recording at resolutions of up to 8 MP. It decodes Ultra 265, H.265 and H.264 video, while the HDMI and VGA outputs can operate simultaneously. It supports the ONVIF protocol and a hard drive with a capacity of up to 6 TB.

  • Type: PoE NVR
  • Channels: 4
  • Recording resolution: Up to 8 MP
  • Video compression formats: Ultra 265, H.265, H.264
  • Incoming bandwidth: 40 Mbps
  • Outgoing bandwidth: 40 Mbps
  • Simultaneous playback: 4 channels
  • Decoding: 1 × 8 MP at 30 fps, 1 × 5 MP at 30 fps, 2 × 4 MP at 30 fps, 4 × 3 MP at 25 fps, 4 × 1080p at 30 fps or 8 × 720p at 30 fps
  • Video outputs: HDMI and VGA
  • HDMI output: Up to 3840 × 2160 at 30 Hz
  • Audio output: 1 RCA channel
  • Audio compression: G.711A, G.711U
  • Network interface: 1 × RJ-45 10/100/1000 Mbps
  • PoE ports: 4 × RJ-45 10/100 Mbps
  • Maximum PoE power: 30 W per port and 54 W total
  • PoE standards: IEEE 802.3at, IEEE 802.3af
  • Drive support: 1 SATA slot, up to 6 TB per drive
  • USB ports: 2 × USB 2.0
  • Alarm inputs: 4 channels
  • Alarm outputs: 1 channel
  • Protocols: ONVIF, P2P, UPnP, DHCP
  • Power supply: 48 V DC
  • Power consumption: Up to 9 W without a hard drive
  • Operating temperature: From -10 °C to 55 °C
  • Operating humidity: Up to 90% RH, non-condensing
  • Dimensions: 260 × 243 × 46 mm
  • Weight: Approximately 1.2 kg
  • Package contents: NVR recorder, wired mouse, power cable, power adapter, connection cables, screws, user manual

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Specifications

Type
NVR

Type

NVR
Recorder that uses IP cameras and network connection for video recording and management.
Number of Channels Outputs
4

Number of Channels Outputs

The maximum number of cameras that can be connected to and managed by the recorder
Resolution
4K

Resolution

4K

The highest resolution available on the market (also known as 8 Megapixels). It offers 4 times more detail than Full HD. This is cinematic quality that allows for maximum possible zoom to recognize critical details, even from a great distance.
WiFi
No

WiFi

Specifies whether the device can connect wirelessly to your router (Wi-Fi)
Number of POE
4

Number of POE

Specifies how many IP cameras can be connected directly to the recorder (NVR) and powered by it. Each PoE port provides power and data through the same cable (plug-and-play).
Incoming Bandwidth
40 Mbps

Incoming Bandwidth: 40

This is the actual processing power of the recorder. It determines how much "load" (data) it can handle simultaneously from all cameras. A high number is necessary for many channels at high 4K resolution.


  • Example 1: You have 4 cameras of 5MP (each requiring ~8 Mbps). A total of ~32 Mbps is required. An NVR with 80 Mbps Incoming Bandwidth is more than enough.
  • Example 2: You have 16 cameras of 4K (each requiring ~12 Mbps). A total of ~192 Mbps is required. An NVR with 160 Mbps is not enough and will "lose" cameras or reduce their quality. Here, you need an NVR with at least 256 Mbps.
Gigabit Port
No

Gigabit Port

Specifies the speed of the wired network connection (LAN). "Gigabit" (1000 Mbps) is 10 times faster than standard "Fast Ethernet" (100 Mbps). It is essential for multi-channel 4K NVRs to handle the large volume of data from the cameras without delay.
Ports
PoE, VGA, HDMI, Alarm Input, Alarm Output, USB

Ports

PoE

These ports allow you to connect IP cameras directly to the recorder. The camera receives power and transmits video through the same network cable, making installation extremely simple (plug-and-play).

VGA

An analog video output. Used to connect the recorder to older computer monitors.

HDMI
The digital output for video and audio. It is the standard way to connect the recorder to a modern TV or monitor (PC) and view your cameras in high resolution.
Alarm Input
Physical ports (terminals) that allow external sensors (e.g., door magnetic contact, radar) to send a "command" to the recorder (e.g., "The door just opened, start recording or send a notification").
Alarm Output
Physical ports (terminals) that allow the recorder to give a "command" to external devices. For example, "As soon as I detect a person, activate an external siren or turn on the lights."
USB

Its main use is to connect a mouse for menu navigation and settings. Additionally, it is used to connect a USB stick (flash drive) in order to export (take a backup of) specific video clips that interest you.
ONVIF
Yes

ONVIF

ONVIF is a protocol that allows cameras and recorders from different manufacturers to communicate with each other.

Smart AI Detection

Human Detection
No

Human Detection

The technology recognizes human shapes in real time. Ideal for security, area monitoring, or alarms, reducing false alarms caused by other objects.
Vehicle Detection
No

Vehicle Detection

Recognizes and tracks vehicles, distinguishing them from other objects. Useful for parking, traffic management, or road surveillance.

HDD

HDD Slots
1

HDD Slots

The number of internal hard drives (SATA) that can be installed simultaneously in the recorder.
Maximum Capacity per Disk
6 TB

Maximum Capacity per Disk

The maximum size (in TB - Terabytes) of the hard drive that the device "recognizes" and supports in each slot.
Includes Hard Drive
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
