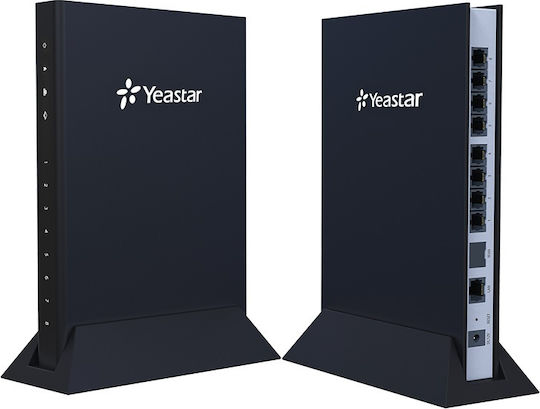

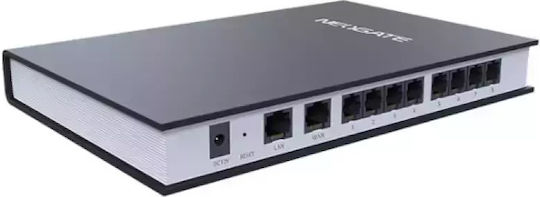

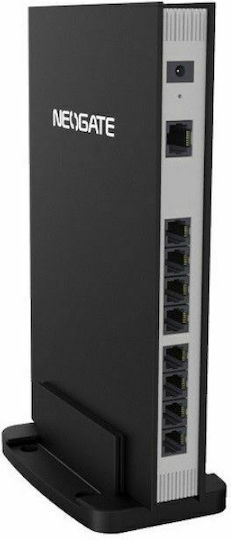

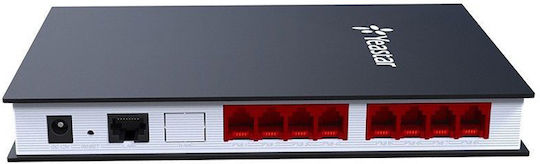

The Yeastar TA810 allows the connection of 8 PSTN lines or PABX extension ports for a wide range of IP applications. The high-quality and reliable TA810 is ideal for call centers, multi-site companies, and provider services.

The TA810 is a standalone FXO VoIP gateway with provider-level features and reliability.

• 8 FXO ports
• Full compliance with SIP and IAX2
• Flexible call rules
• Excellent voice compression with industry-standard codecs
• Line echo cancellation for echo delays of 8, 16, 32, 64, or 128 ms
• Tested and certified with Elastix, BroadSoft, and others

Specifications

• Port Interfaces: 8 FXS ports
• Phone Interfaces: RJ11
• Network Interfaces: 1 10/100BASE-T Ethernet
• Indicators: LED status and activity indicators
• Media Protocols: SIP (RFC3261), IAX2
• Transports: UDP, TCP, TLS, SRTP
• Codecs: G.711 (alaw/ulaw), G.722, G.723, G.726, G.729A/B, GSM, ADPCM
• Voice Features: ITU-T G.168 LEC Echo Cancellation
• DTMF Mode: RFC2833, SIP Info, In-band
• Fax: T.30
• QoS: DiffServ, ToS, 802.1 P/Q VLAN tagging
• Telephone Features: Call Management, Programmable AC Impedance
• Networking: DHCP, DDNS, OpenVPN, Static Route, VLAN
• Physical: FXO Loop Start, FXO Kewl Start signaling capabilities
• Dimensions (L x W x H) (mm): 200 x 137 x 25
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 65°C
• Humidity: 10-90% non-condensing
• Installation: Desktop, Wall-mounted
• Compatibility: Softswitch and IP-PBX, Interoperable with 3CX, Asterisk, Lync Server, and FreePBX
