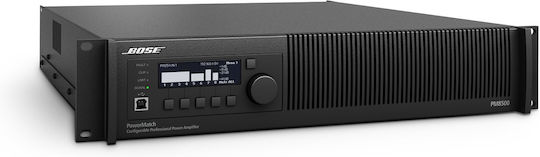

The Bose PowerMatch PM8500N professional PA amplifier features 8 channels, built-in audio DSP, and Ethernet network connectivity for control and monitoring. Its Class-D output topology and operation with multiple channel and power configurations meet different installation requirements. USB Type-B and RJ-45 Ethernet connect the unit to a computer and network.
The DSP includes 8 × 8 signal routing, Bose Professional speaker presets, input and output equalization, crossover filters, and up to 3 s of output delay. The cooling system uses microprocessor-controlled variable-speed fans with front-to-back airflow. Configuration and control are also available through ControlSpace Designer software version 3.2 or later.
- Type: PA amplifier
- Channels: 8
- Power at 4 Ω: 500 W per channel
- Power at 100 V: 4000 W
- Class technology: D
- Audio inputs: 8 balanced analog line-level inputs
- Input sensitivity: 0, +4, +12, or +24 dBu options
- Maximum input level: +24 dBu

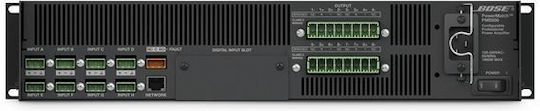

- Input connectors: 3-pin Phoenix Contact
- Audio outputs: 2 to 8, configurable
- Output connectors: 8-pin Phoenix Contact, for 10–24 AWG cables
- DSP: 48 kHz / 24-bit A/D and D/A converters
- Frequency response: 20 Hz–20 kHz at 1 W and ±0.5 dB
- Signal-to-noise ratio: >102 dB, A-weighted
- Channel separation: >65 dB between adjacent channels at 1 kHz
- Damping factor: >1000 at 10–1000 Hz and 4 Ω
- Input equalization: 5-band PEQ (±20 dB), notch, shelving, high-pass, and low-pass
- Crossover filters: Butterworth, Bessel, or Linkwitz-Riley, up to 48 dB/octave
- Speaker equalization: 9-band PEQ (±20 dB), shelving, high-pass, low-pass, and 2-band RoomMatch array EQ
- Maximum output delay: 3 s
- Protection: High temperature, DC, HF, short circuit, overvoltage, overcurrent, inrush current, and mains circuit breaker protection
- LED indicators: Signal, limit, clip, and fault
- Controls: Mute, input sensitivity, output configuration, output attenuation, EQ enable, and preset selection
- Display: 240 × 64 LCD
- Connections: USB Type-B and 100 Mb RJ-45 Ethernet
- Power supply voltage: 100–240 V, 50/60 Hz
- Cooling system: Microprocessor-controlled variable-speed fans with front-to-back airflow
- Width: 483 mm
- Height: 76 mm
- Depth: 525 mm
- Weight: 12.9 kg
- Operating temperature: 0–40 °C
Technical Specifications
- Amplifier Type
- PA Amplifier
- Type
- Preamplifier
- Channels
- 8
- Power (4Ω)
- 500 watt / channel
- Power (100V)
- 4000 W
- Class
- D
Additional Specifications
- Radio
- No
- Cooling system
- Yes
Connectivity
- RCA
- No
- XLR
- No
- Mini Jack (3.5mm)
- No
- Jack (6.3mm)
- No
- USB
- Yes
- Ethernet
- Yes
- Bluetooth
- No
- Mic In
- No
Dimensions
- Width
- 483 mm
- Height
- 76 mm
