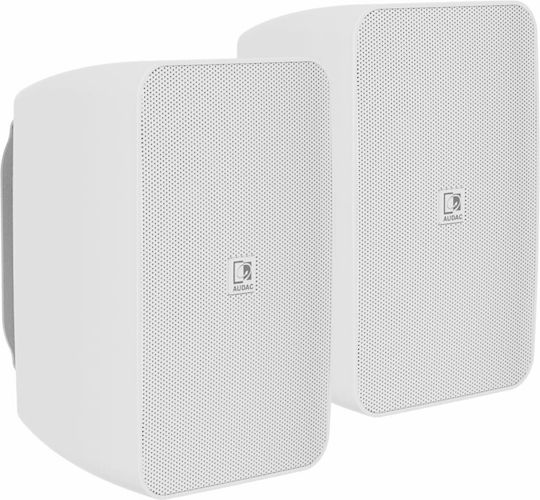

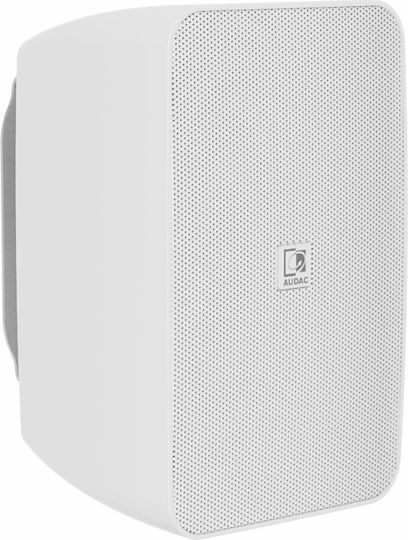

Pair of self-powered 2-way speakers with network input for connection to input panels.
Features:
- RMS Power: 2 x 20 W
- Dynamic power: 2 x 40 W
- Sensitivity (1W/1m): 89 dB
- Sound Pressure (Max. W/1m): 105 dB
- Frequency response (± 3 dB): 80 Hz - 20 kHz
- Standby time: 20 minutes
- Power supply: 100 ~ 240 V AC / 50 ~ 60 Hz
- Power connector: IEC C7/C8 power inlet
- Outputs Passive loudspeaker: 2-pin Euro Terminal Block (Pitch - 5.08 mm)
- Drivers: HF: 13 mm (PEI tweeter), LF: 5 1/4" (Polypropylene)
- Dispersion: Horizontal: 210° (Average -6 dB / 100 Hz – 10 kHz), Vertical: 205° (Average -6 dB / 100 Hz – 10 kHz)
- Nominal power consumption (1/8 MUP): 11.3 W
- Standby power consumption: < 0.35 W
- Inputs: Balanced stereo connector: 2 x 3-pin Euro Terminal Block (Pitch - 3.81 mm), Unbalanced stereo connector: 3.5 mm Jack (2x), Remote connector: RJ45
- Dimensions: 240 x 150 x 146 mm
- Weight: 3.5 kg
- Product Number
- ARES5A
Technical Specifications
- Power (RMS)
- 20 W
- Driver Configuration
- 2 No of Drivers
- Sensitivity
- 89 dB
Main Specifications
- Placing
- Wall
- Quantity
- Pair
- Colour
- White
- Functionality
- Active
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
