The L-507z is added to Luxman's series of enhanced machines with many developments and features, including the new distortion cancellation engine design “LIFES1.0”.
“LIFES” is a significant evolution from the “ODNF” circuit, which has long been a key advantage of Luxman amplifiers since its introduction in the X series in 2010. The powerful L-507z marks the beginning of the Z series, all developed to include this latest high-quality amplification system “LIFES”.

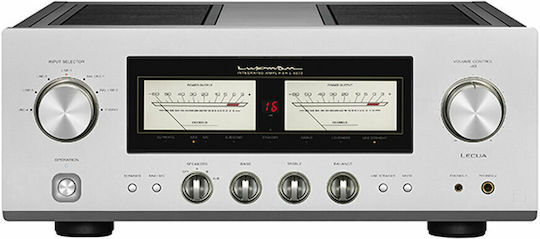

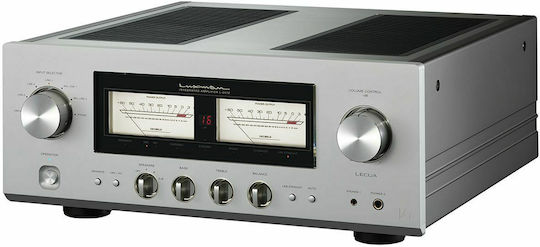

Additionally, new user capabilities enhance both the convenience and performance that music listeners demand today. The updated VU meters on the front panel are combined with a 7-segment LED display for better visibility of volume levels from any listening position.

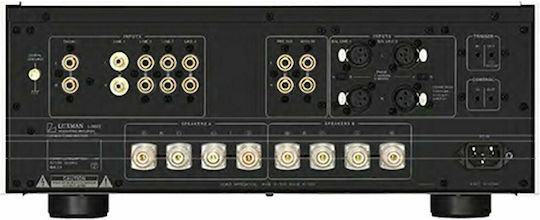

Next to the standard 6.3 mm headphone jack, there is a new balanced 4mm “Pentaconn” output jack for better L-R separation. The 12-volt trigger connections on the rear panel are now integrated, facilitating integration between automated systems or home theater.
- Unique output: 110 W+110 W (8 Ω) / 210 W+210 W (4 Ω)
- Input sensitivity / Impedance: PHONO (MM) 2.5 mV / 47 kΩ, PHONO (MC) 0.3 mV / 100 Ω, LINE 180 mV / 47 kΩ
- Total harmonic distortion: 0.007 % (1 kHz / 8 Ω), 0.03 % (20 Hz to 20 kHz / 8 Ω)
- S/N ratio LINE: 105 dB or more
- Frequency response LINE: 20 Hz to 100 kHz (within -3 dB)
- Power consumption: 350 W, 86 W (no signal), 0.4 W (in standby mode)
- Dimensions: 440 (W) x 178 (H) x 454 (D) mm
- Weight: 25.4 kg
Technical Specifications
- Type
- Integrated
- Technology
- Solid
- Channels
- Stereo
- Power (8Ω)
- 110 watt / channel
- Power (4Ω)
- 220 watt / channel
- SNR
- 105 dB
Connectivity
- Phono
- Yes
- Optical
- No
- Coaxial
- No
- USB
- No
- Ethernet
- No
- Analog
- Yes
- Headphones
- Yes
- Subwoofer
- No
- Wifi
- No
- Bluetooth
- No
Features & Functions
- Radio
- No
Dimensions
- Width
- 44 cm
- Length
- 45.4 cm
- Height
- 17.8 cm
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
