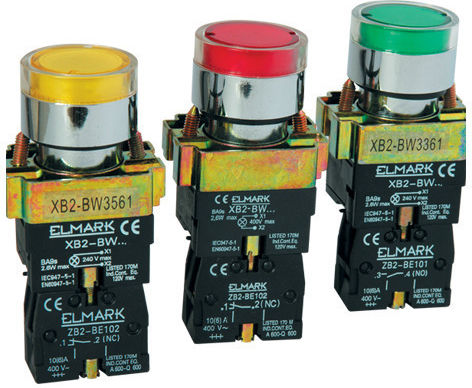

Button with LED lamp EL2-BW 3471 230V red.
- Technical specifications:
- Insulation voltage: 660V; 50/60Hz
- Surge resistance: 6000V
- Nominal current: 6A (230V AC); 0.3A (230V DC)
- IP code: IP20
- Short circuit protection: 10A gG switch outside the circuit
- Resistance to mechanical wear: 1х106 switching cycles
- Operating temperature: -20° to 70°С
- Humidity: 35-85%RH
- Cable connection torque: 0.15 Nm
- Conductor section: 1х0.5; 1х0.75; 1х1; 1х1.5; 1х2.5mm2
Installation:
- On a flat metal or plastic surface with thickness: maximum 4mm
- Opening size: Ø22.5mm
Standards: EN60947-1; EN60947-5-1
- Type
- Push Button
