The Zyxel NWA55AXE access point creates or extends a wireless network and supports Wi‑Fi Mesh to connect multiple devices. It operates on the 2.4 GHz and 5 GHz bands and uses Wi‑Fi 6, which coordinates communication with connected devices for lower battery consumption and better performance in environments with many Wi‑Fi devices.

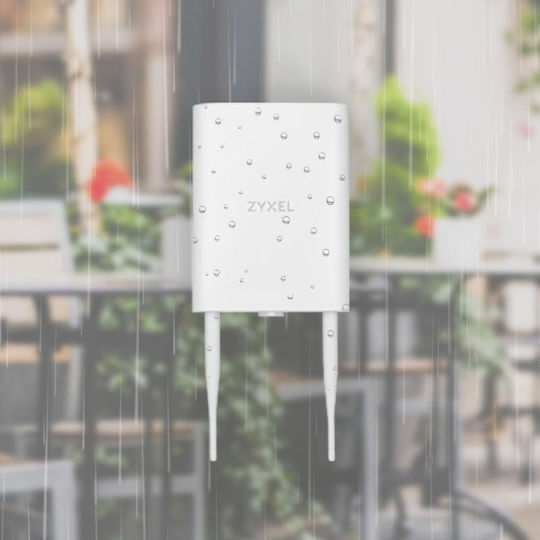

The 2.4 GHz frequency offers greater range, while 5 GHz provides higher speeds and is more sensitive to obstacles. It is designed for outdoor installation and supports PoE+.
- Type: Access point
- Wi‑Fi Mesh: Supported
- Wi‑Fi generation: Wi‑Fi 6
- Frequency: Dual Band (2.4 & 5GHz)
- Maximum WLAN speed: 1775 Mbps
- LAN speed: 1000 Mbps
- IEEE networking standards: 802.11a, 802.11 b/g/n, 802.11ac, 802.11ax
- Installation: Outdoor
- Antenna: 5 dBi
- Maximum transmission power: 26 dBm
- MIMO technology: 2x2
- PoE support: PoE+
- Package: Single kit
Technical Specifications
- Frequency
- Dual Band (2.4 & 5GHz)
- Maximum WLAN Speed
- 1775 Mbps
- Wi-Fi Generation
- Wi‑Fi 6
- IEEE Networking Standards
- 802.11a, 802.11 b/g/n, 802.11ac, 802.11ax
- LAN speed
- 1000 Mbps
- Wi-Fi Mesh Network
- Yes
- Ethernet Backhaul
- No
- Antenna Power (max)
- 5 dBi
- Transmit Power (max)
- 26 dBm
- PoE Support
- PoE+
- MIMO Technology
- 2x2
General Characteristics
- Placement
- Outdoor
- Packaging
- Single Kit
Installation Type
- Ceiling
- No
- Wall
- No
- Board games
- No
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
