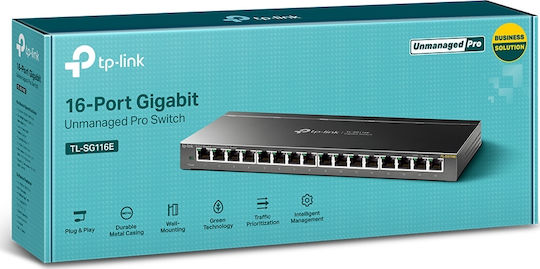

The TP-LINK TL-SG116E v2 switch connects devices in home and small business networks through 16 Gigabit Ethernet ports. It features plug-and-play operation, while automatic MDI/MDI-X crossover and speed negotiation simplify connections on every port. The metal enclosure is fanless.
For traffic monitoring and management, it supports Port Mirroring, Loop Prevention, Cable Diagnostics, IGMP Snooping, and Port/802.1p/DSCP QoS prioritization. It also supports MTU VLAN, Port-Based VLAN, and 802.1Q VLAN, with management via web interface or utility. Power consumption adjusts according to link status and cable length.
- Type: Unmanaged Layer 2 switch
- Mounting: Desktop
- Ports: 16 RJ45 Gigabit Ethernet ports, 10/100/1000 Mbps
- Installation: Plug-and-play, no configuration required
- Port features: Automatic MDI/MDI-X crossover and speed negotiation
- Management: Via web interface and downloadable utility
- Monitoring and diagnostics: Port Mirroring, Loop Prevention, Cable Diagnostics, and IGMP Snooping
- Traffic prioritization: Port/802.1p/DSCP QoS
- VLAN features: MTU VLAN, Port-Based VLAN, and 802.1Q VLAN
- Switching capacity: 32 Gbps
- Forwarding rate: 23.81 Mpps
- MAC address table: 8,000 entries
- Packet buffer: 4.1 Mbit
- Jumbo Frame: 10,000 bytes
- Enclosure: Fanless metal
- Power supply: External 12 V / 1 A adapter
- Maximum power consumption: 9.19 W at 220 V / 50 Hz
- Maximum heat dissipation: 31.36 BTU/h
- Energy saving: Power consumption automatically adjusts according to link status and cable length
- Dimensions: 286 × 111.7 × 25.4 mm
- Certifications: CE, FCC
- Operating temperature: 0 to 40 °C
- Storage temperature: -40 to 70 °C
- Package contents: 1 switch
Network Specifications
- Type
- Unmanaged
- Layer
- L2
- PoE
- No
Technical Specifications
- Ethernet connections
- 16 Port
- Ethernet Speed
- 1000 Mbps
- Switching Speed
- 32 Gbps
- MAC Address Table
- 8000 entries
- Rack mounting
- No
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
