I like it. Lately, my new favorite thing is fanless, or passive cooling PCs. They remind me of the 80s when I was a child and I liked the Amiga, Atari, etc. And those were fanless, while the power supply of the Amiga was like a big brick, so it wouldn't overheat. Only when the floppy disk was working did it make noise. So, now that we have the option of silence again, it suits me very well. By the way, I sleep with earplugs (we live on a busy road) and recently I also got a silent mouse :D.
Due to some mishaps, it took a while for this particular machine to arrive in my hands, as I had ordered it from a store the week after Easter. It didn't go well and now it came from a different store. In the meantime, I experimentally got the Gigabyte Brix GB-BPCE-3350C (rev. 1.0), which is cheaper and weaker, but I liked it too. I have also made an evaluation on that one. I intended for this one to become my main machine, leaving my 7th generation i5 laptop aside. But after searching here and there, I decided to order from abroad another 3rd best fanless. In Greece, there are some better fanless ones, which are a bit expensive, and those are:
-ECS Liva Z2 Barebone (Pentium Quad Core-N5030) for ~182€, the
-Asus PN41-BBC130MVS1 Barebone (Celeron Dual(!!Quad!!) Core-N5100) for ~258€ (previously 232€), the
-Zotac ZBOX Nano CI331 Barebone (Celeron Quad Core-N5100) for ~266€ (previously 205€), the
-Asus PN41-BBP131MVS1 Barebone (Pentium Quad Core-Silver N6000) for ~320€ (previously 251€), the
-Shuttle DL20N6 Barebone (Pentium Quad Core-N6005) for ~388€ (previously 299€.. Shuttle has cheaper fanless ones (N4505), but not better than those with the N5100), the
-Shuttle XPC Slim DS20U3V2 Barebone (Core i3-10110U) for ~686€ and the
-Shuttle DS20U7 Barebone (Core i7-10510U) for ~1008€.
The last 2 seemed very expensive to me, while I didn't know that the rest were fanless, since our own don't advertise it. I discovered it along the way with some research. Most likely I would buy one from ASUS and above (the N5030 is not better than the N4500), but I found a competitive one (with the N100 processor) from abroad before them, cheaper but not branded. I wrote a lot, but I wanted to get you in the spirit.

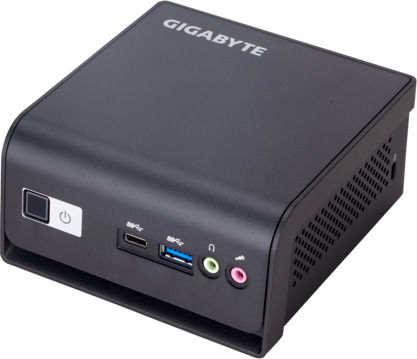

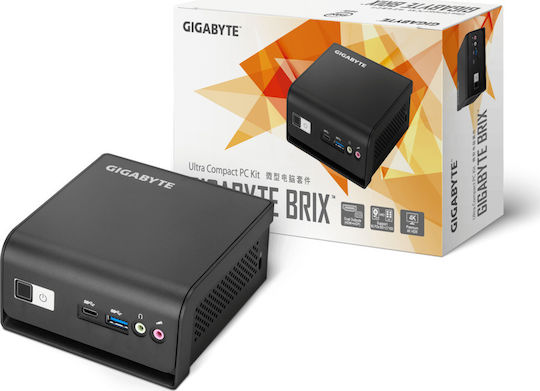

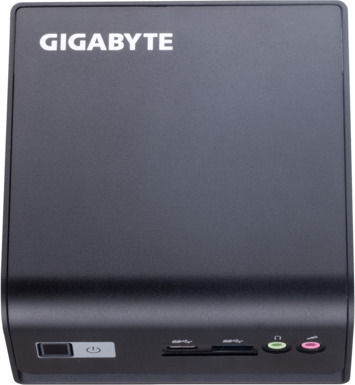

For this machine (Gigabyte Brix GB-BMCE-4500C (rev. 1.0) Barebone):
I got it the S/O 8GB DDR4 PC 3200 Kingston ValueRam KVR32S22S8/8 memory that GIGABYTE recommended among others, and with a Kingston SSD, the installation of Windows 10 was very easy. It found the drivers on its own, but they were not effective, so I installed the ones from the GIGABYTE website.
In terms of performance, it is quite good, to the point where I could actually rely on it instead of my old i5. Some relatively old games that I ran as benchmarks, it ran them almost like the i5. The games are: A direct 3D version of the old Elite Frontier 1st Encounters, the Minecraft demo, and the Euro Truck Simulator 2 from 2013, Hitman Contracts from 2004, Midtown Madness 2 from 2000 (adapted to run on newer systems), and some others. The truck simulator required slightly lower settings. The iGPU has 16EU (execution units) and 192 Shaders. And the machine runs very smoothly on Windows 10. But on YouTube, something strange happened... It was dropping quite a few frames. I had seen this before, about 6 months ago, on a Celeron desktop from around 2014 that I built for my father. I solved the problem by unchecking the option "Animate controls and elements inside Windows" in the System/Advanced system settings/Performance(Settings) tab. It seems like Windows intentionally makes it heavy to drive out old machines, thus burdening this specific option (maybe others as well). However, the machine we are discussing is about 2 years old and should not have this problem. So, it's a fault of Windows 10. I haven't tried Windows 11 yet, as I have been avoiding it. By unchecking the mentioned option on the new machine, the problem was indeed solved and everything plays smoothly on YouTube, in full HD and fullscreen. The processor is capable, as it has integrated codec decoders for h264, AVC, VC-1, h265 8+10bit, VP8+9, and JPEG. I learned that YouTube mainly plays with AVC and VP9, so there is no problem. The problem is purely with Windows 10 and maybe the browsers (both Firefox and Chrome). By unchecking the mentioned option, the only significant thing we lose is the moving dots on the tabs, indicating activity on the internet. Now, it only shows a static hourglass. I'm not bothered by this loss. It seems fine in terms of temperatures, only reaching 90-95 degrees Celsius with some games, while it can safely operate up to 105 degrees before throttling - thermal core throttling. Additional drawbacks: it only has 3 USB-A ports and instead of a fourth, it has one USB-C port. And instead of a VGA output, it has a mini-display port. It has HDMI, which is good. I like the machine and I could definitely work with it alone. But for example, tweaking Windows settings for YouTube is not for the average user. However, the average user wouldn't buy a barebone system, as it requires some specialized knowledge. I haven't tried it with Ubuntu, but I assume it would be even more comfortable and suitable for a 24/7 server role. *Fanless systems consume even less power than regular mini PCs. Compared to a desktop machine, they consume about 1/8-1/10 of the power!
Μου αρέσει. Τώρα τελευταία το νέο αγαπημένο μου πράγμα είναι τα fanless (χωρίς ανεμιστηράκι), ή passive cooling PC. Μου θυμίζουν την εποχή των 80s που ήμουν παιδί και μας άρεσε η Amiga, ο Atari κλπ. Και εκείνα χωρίς ανεμιστηράκι ήταν, ενώ το τροφοδοτικό της Amiga ήταν σαν μεγάλο τούβλο, έτσι ώστε να μην υπερθερμαίνεται. Μόνο όταν δούλευε η δισκέτα κάνανε θόρυβο. Έτσι, αφού πλέον έχουμε την επιλογή του αθόρυβου ξανά, πολύ με εκφράζει. Παρεμπιπτόντως κοιμάμαι και με ωτοασπίδες (μένουμε σε μεγάλο δρόμο) και πρόσφατα πήρα και silent ποντίκι :D .
Λόγω κάποιων κακοτυχιών, άργησε να έρθει το συγκεκριμένο μηχάνημα στα χέρια μου, αφού το είχα παραγγείλει από ένα κατάστημα την εβδομάδα μετά το Πάσχα. Δεν πήγε καλά και τώρα μου ήρθε από 2ρο κατάστημα. Εν τω μεταξύ πήρα πειραματικά το Gigabyte Brix GB-BPCE-3350C (rev. 1.0) που είναι ποιο φθηνό και ποιο αδύναμο, αλλά μου άρεσε και αυτό. Έχω κάνει και σε αυτό αξιολόγηση. Αυτό εδώ ως ποιο ισχυρό, το προόριζα να γίνει το κυρίως μου μηχάνημα, αφήνοντας στην άκρη τον i5 7ης γενιάς φορητό μου. Αλλά ψάχνοντας από εδώ και από εκεί, αποφάσισα και παρήγγειλα από το εξωτερικό, άλλο 3το καλύτερο fanless. Στην Ελλάδα υπάρχουν κάποια καλύτερα fanless, τα οποία όμως είναι ψιλό ακριβά και αυτά είναι τα:
-ECS Liva Z2 Barebone (Pentium Quad Core-N5030) με ~182€, το
-Asus PN41-BBC130MVS1 Barebone (Celeron Dual(!!Quad!!) Core-N5100) με ~258€ (πριν λίγο 232€), το
-Zotac ZBOX Nano CI331 Barebone (Celeron Quad Core-N5100) με ~266€ (παλιά 205€), το
-Asus PN41-BBP131MVS1 Barebone (Pentium Quad Core-Silver N6000) με ~320€ (παλιά 251€), το
-Shuttle DL20N6 Barebone (Pentium Quad Core-N6005) με ~388€ (παλιά 299€.. η Shuttle έχει και άλλα φθινότερα fanless (N4505), αλλά όχι καλύτερα πχ από αυτά με τον N5100), το
-Shuttle XPC Slim DS20U3V2 Barebone (Core i3-10110U) με ~686€ και το
-Shuttle DS20U7 Barebone (Core i7-10510U) με ~1008€.
Τα 2 τελευταία μου φάνηκαν πανάκριβα, ενώ τα υπόλοιπα δεν ήξερα ότι είναι fanless, αφού δεν το διαφημίζουν οι δικοί μας. Το ανακάλυψα στην πορεία με ψάξιμο. Μάλλον κάποιο από το ASUS και επάνω θα αγόραζα (ο Ν5030 είναι δεν είναι καλύτερος από τον Ν4500), αλλά βρήκα πριν από αυτά ένα ανταγωνιστικό (με τον N100 επεξεργαστή) από το εξωτερικό, φθηνότερο, αλλά όχι επώνυμο. Πολλά έγραψα, αλλά ήθελα να σας βάλω στο πνεύμα.
Για το μηχάνημα αυτό (Gigabyte Brix GB-BMCE-4500C (rev. 1.0) Barebone):
Του πήρα την μνήμη S/O 8GB DDR4 PC 3200 Kingston ValueRam KVR32S22S8/8 που πρότεινε μεταξύ άλλων η GIGABYTE και με έναν Kingston SSD, ήταν πανεύκολη η εγκατάσταση των windows 10. Βρήκαν μόνα τους τα 10 κάποιους οδηγούς, αλλά δεν ήταν αποτελεσματικοί και εγκατέστησα αυτούς από το site της GIGABYTE.
Από επιδόσεις είναι αρκετά καλός, σε βαθμό που πράγματι θα μπορούσα να βασιστώ σε αυτόν αντί για τον παλιό i5 μου. Κάποια σχετικά παλιά παιχνίδια που έτρεξα σαν benchmark, τα έτρεξε σχεδόν σαν τον i5. Τα παιχνίδια είναι: Μία direct 3D έκδοση του παλιού Elite Frontier 1st Encounters, Demo του Minecraft και του Euro Truck Simulator 2 από το 2013, To Hitman Contracts από το 2004, το Midtown Madness 2 από το 2000 (προσαρμοσμένο να τρέχει σε νεότερα συστήματα) και κάποια άλλα. Το truck simulator ήθελε λίγο χαμηλότερες ρυθμίσεις.. H iGPU έχει 16EU(μονάδες εκτέλεσης) και 192Shaders. Και το μηχάνημα κινείται πολύ άνετα στα windows 10. Στο youtube όμως ένα περίεργο.. Του έφευγαν κάμποσα frame.. Αυτό το είχα ξανά δει, πριν περίπου 6 μήνες, σε έναν Celeron desktop τεχνολογίας του ~2014 που έχω φτιάξει στον πατέρα μου. Εκεί το έλυσα το πρόβλημα, βγάζοντας από την καρτέλα Σύστημα/Ρυθμίσεις συστήματος για προχωρημένους/Επιδόσεις(Ρυθμίσεις) την επιλογή “Κίνηση των στοιχείων ελέγχου και των στοιχείων στα παράθυρα” (System/Advanced system settings/Performance(Settings) uncheck “Animate controls and elements inside Windows”). Μάλλον επίτηδες κάνουν τα windows βαριά για να διώξουν τα παλιά μηχανήματα, και έτσι βαρύνανε την συγκεκριμένη επιλογή (ίσως και άλλες). Το μηχάνημα όμως που συζητάμε είναι περίπου 2 χρονών, δεν θα έπρεπε να έχει πρόβλημα.. Φάουλ λοιπόν για τα windows 10. Δεν δοκίμασα τι ισχύει με τα windows 11, αφού μέχρι τώρα τα αποφεύγω. Ξε-τσεκάροντας την επιλογή που είπα πριν στο νέο μηχάνημα, πράγματι πάλι έλυσε το πρόβλημα και παίζουν στο youtube όλα άνετα και ωραία και FHD και σε πλήρη οθόνη. Ο επεξεργαστής είναι καθ’ όλα ικανός, αφού έχει ενσωματωμένους αποκωδικοποιητές codec για: h264, AVC, VC-1, h265 8+10bit, VP8+9 και JPEG. Το youtube έμαθα παίζει κυρίως με τα AVC και VP9, οπότε δεν υπάρχει πρόβλημα. Το πρόβλημα είναι καθαρά των windows 10 και ίσως και των browser (και firefox και chrome). Ξε-τσεκάροντας την επιλογή που προ-ανέφερα, το μόνο ας πούμε σημαντικό-πράγμα που έχω καταλάβει να χάνουμε, είναι οι κινούμενες μπιλίτσες επάνω στα TAB (καρτέλες), που μας δείχνουν ότι κάτι κινείται στο internet. Τώρα βγάζει μόνο μία ακίνητη κλεψύδρα. Εμένα δεν με ενοχλεί αυτή η απώλεια.
Από θερμοκρασίες φαίνεται οκ, μόνο με κάποια παιχνίδια έπαιζε 90-95 βαθμούς κελσίου, ενώ μπορεί να δουλέψει ασφαλώς, μέχρι και τους 105 βαθμούς πρίν να κάνει throttling – Θερμικό στραγγαλισμό πυρήνα.
Επιπλέον μειονεκτήματα: έχει μόνο 3εις usb-A θύρες και αντί για 4η, έχει μία usb-c. Και αντί για vga έξοδο έχει μία mini-display port. Έχει hdmi καλώς.
Εμένα μου αρέσει το μηχάνημα και πράγματι θα μπορούσα να δουλεύω μόνο με αυτό. Αλλά πχ η παρέμβαση στις ρυθμίσεις των windows για το youtube, δεν είναι για τον μέσο χρήστη. Αλλά πάλι, ο μέσος χρήστης δεν θα αγόραζε barebone, αφού θέλει λίγο εξειδικευμένες γνώσεις. Δεν το έχω δοκιμάσει με ubuntu, αλλά υποθέτω εκεί θα είναι ακόμη ποιο άνετο και κατάλληλο και για ρόλο server 24/7.
*Τα fanless καταναλώνουν ακόμη λιγότερο ρεύμα από τα κοινά mini pc. Σε σχέση με ένα desktop μηχάνημα, καταναλώνουν περίπου το 1/8-1/10!
