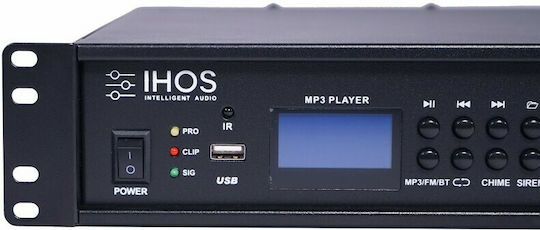

Public Broadcasting amplifier with 240W mixer. Features 100V / 70V constant voltage output, 8 ohm constant resistance output, mp3, bluetooth, FM tuner, USB interface, LCD screen, 3 line inputs, 2 microphone inputs, 1 line output, Treble and Bass, and IR control function.
Features:
- Rated Power: 240 Watt
- Mic input: -60dB, 6000, unbalanced, 6.3mm TS port
- Aux input: -20dB, B310kO, unbalanced, Stereo RCA port
- Aux output: 0dB, 6000, unbalanced, Stereo RCA port

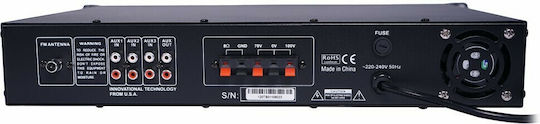

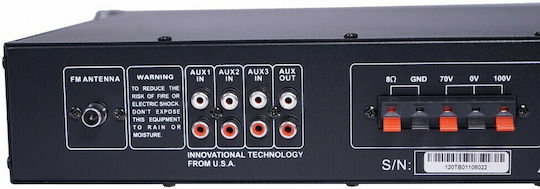

- Speaker output:
- High impedance: 100V, 70V
- Low impedance: 8Ω
- Protection: AC fuse, overheating, overvoltage, overcurrent, short circuit, DC, and muting during power on
- Effects: 5 EQ sound effectors for MP3 player and FM tuner audio output
- EQ for Master Output:
- Treble: ± 12dB at 10kHz
- Bass: ± 12dB at 100Hz
- Frequency response: 20Hz-20kHz (±3dB)
- S/N: Microphone input >66dB; AUX input >75dB
Technical Specifications
- Amplifier Type
- Commercial Amplifier
- Type
- Integrated
- Power (100V)
- 240 W
Additional Specifications
- Radio
- Yes
- Cooling system
- No
Connectivity
- RCA
- Yes
- XLR
- No
- Mini Jack (3.5mm)
- No
- Jack (6.3mm)
- No
- USB
- Yes
- Ethernet
- No
- Bluetooth
- Yes
- Mic In
- Yes
Dimensions
- Width
- 482 mm
- Height
- 70 mm
- Length
- 310 mm
