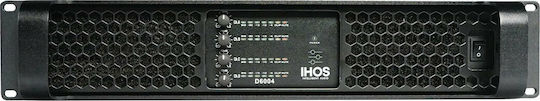

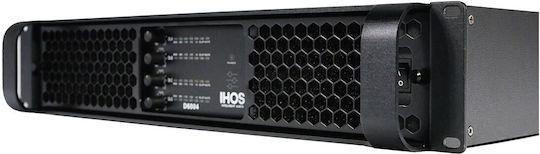

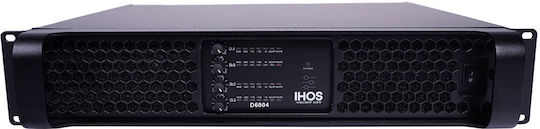

The Ihos D-6004 PA power amplifier has four channels and uses Class D technology. It delivers 1,500 W per channel at 8 Ω and 3,000 W per channel at 4 Ω. It features XLR inputs and Speakon outputs, with a frequency response ranging from 20 Hz to 34 kHz.
- Type: PA power amplifier
- Channels: 4
- Class technology: D
- Power at 8 Ω: 1,500 W per channel
- Power at 4 Ω: 3,000 W per channel

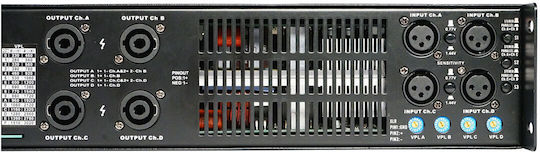

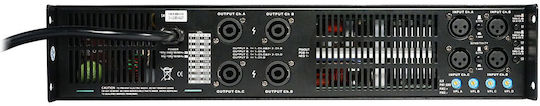

- Inputs: Female XLR
- Outputs: Speakon
- Input impedance: 20 kΩ, balanced
- Input sensitivity: 0.77 V and 1.44 V
- Input CMRR: >80 dB
- Signal-to-noise ratio: >112 dB
- Damping factor: >1000 at 8 Ω
- THD:
- Frequency response: 20 Hz–34 kHz
- VPL setting: Adjustable

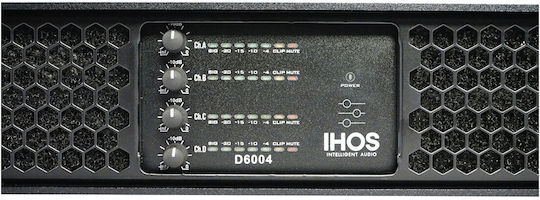

- Level indicator: Illuminated VU indicator
- Temperature control: Temperature-controlled fans
- Width: 490 mm
- Height: 88 mm
- Depth: 415 mm
Technical Specifications
- Amplifier Type
- PA Amplifier
- Type
- Power Amplifier
- Channels
- 4
- Power (8Ω)
- 1500 watt / channel
- Power (4Ω)
- 3000 watt / channel
- Class
- D
Additional Specifications
- Radio
- No
- Cooling system
- No
Connectivity
- RCA
- No
- XLR
- Yes
- Mini Jack (3.5mm)
- No
- Jack (6.3mm)
- No
- USB
- No
- Ethernet
- No
- Bluetooth
- No
- Mic In
- No
Dimensions
- Width
- 490 mm
- Height
- 88 mm
- Length
- 415 mm
