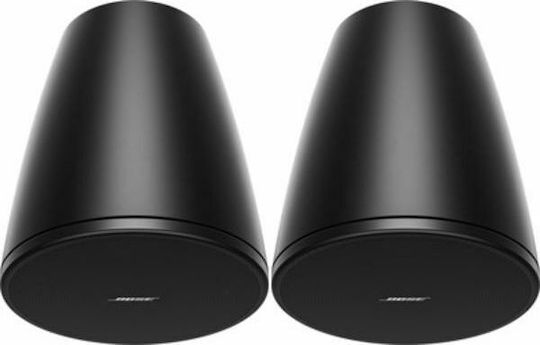

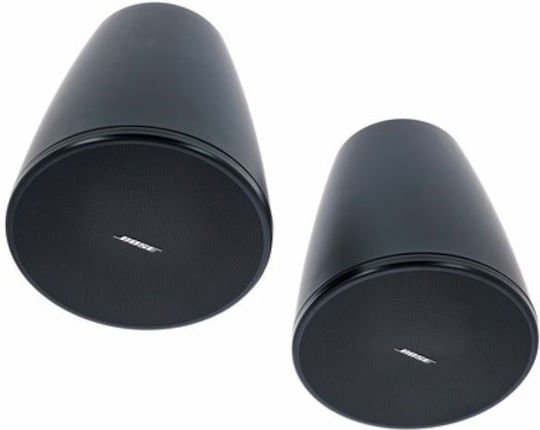

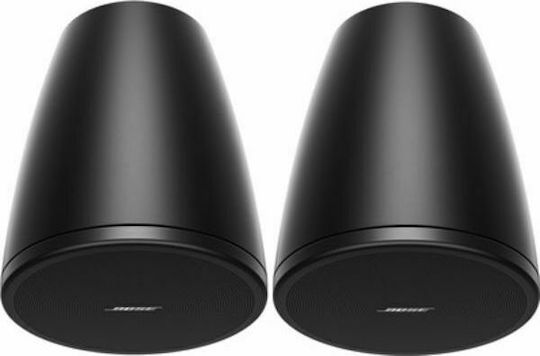

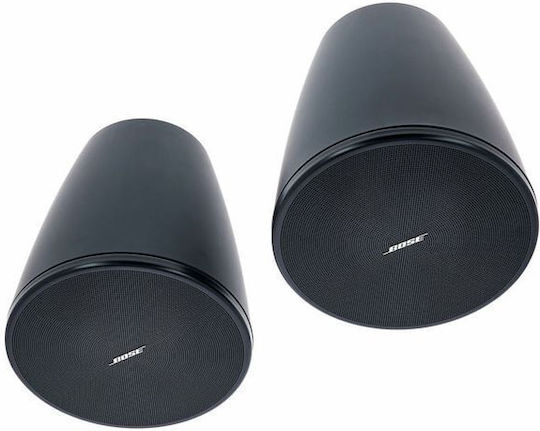

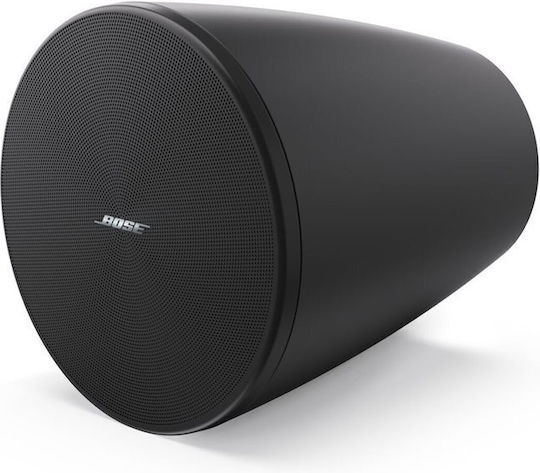

The Bose DesignMax DM5P pendant speakers are passive two-way installation speakers, featuring a 5.25-inch coaxial woofer and a 1-inch neodymium tweeter. They are suitable for indoor use and have a nominal conical dispersion of 120° at 1–4 kHz. Their logo can be rotated or removed.
- Type: Passive pendant speakers
- Quantity: Pair
- Ways: 2
- Woofer: Coaxial, 5.25 inches (133 mm)
- Tweeter: Neodymium, 1 inch (25 mm)
- Use: Indoor
- Frequency response: 65–20,000 Hz
- Dispersion: Nominal conical, 120° (1–4 kHz)
- Continuous power handling: 60 W
- Maximum power: 240 W
- Sensitivity: 87 dB
- Maximum sound pressure level at 1 m: 105 dB, 111 dB peak
- Impedance: 8 Ω
- 70 V transformer taps: 3, 6, 12, 25, 50 W, bypass
- 100 V transformer taps: 6, 12, 25, 50 W, bypass
- Dimensions: 259 × 300 mm (diameter × height)
- Weight: 4.1 kg
- Color: Black
- Logo: Rotatable or removable
- Product Number
- 841166-0110
Technical Specifications
- Power (RMS)
- 60 W
- Freequency Range
- 65 - 20000 Hz
- Driver Configuration
- 2 No of Drivers
- Nominal Impendance
- 8 ohm
- Sensitivity
- 87 dB
Main Specifications
- Placing
- Hanging Pendant
- Quantity
- Pair
- Colour
- Black
- Functionality
- Passive
- IP Protection Rating
- -
- Mounting Bracket
- -
Dimensions
- Height
- 30 cm
- Length
- 30 cm
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
