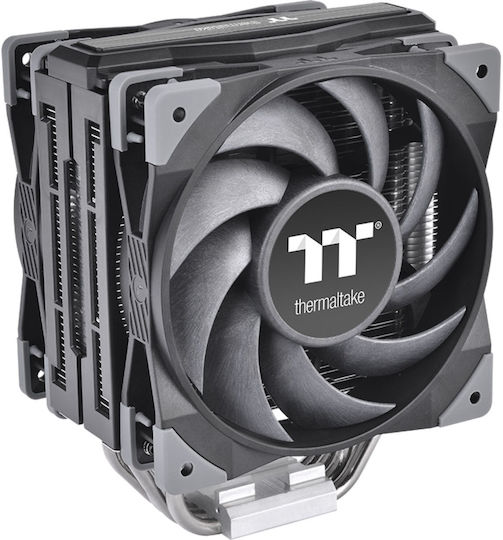

Thermaltake Toughair 510
- Type: Cooler
- Fan diameter: 12 cm
- Rotation speed (min): 500 RPM
- Rotation speed (max): 2000 RPM
- Noise level (high speed): 23.6 dB
- Maximum airflow: 58.35 cfm
- Maximum air pressure: 2.41 mmH2O
- Product color: Black
- Supported processor sockets:
- LGA 1150
- LGA 1151
- LGA 1155
- LGA 1156
- LGA 1200
- Socket AM2
- Socket AM2+
- Socket AM3
- Socket AM3+
- Socket AM4
- Socket FM1
- Socket FM2
- MTBF rating: 40000h
- Material: Aluminum, Copper
- Number of fans: 2

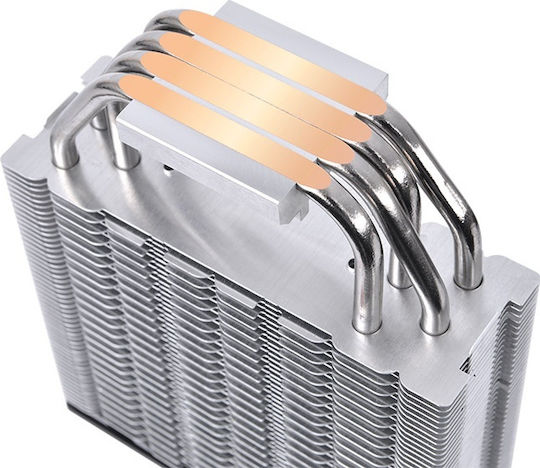

- Number of heat pipes: 4
- Fan connector: 4-pin
- Rated voltage: 12V
- Starting voltage: 6V
- Rated current line: 0.48A
- Width: 98.8 mm
- Depth: 123.6 mm
- Height: 159.5 mm
- Fan dimensions (W x D x H): 120 x 120 x 25 mm
- Heat pipe diameter: 6 mm
Main Specifications
- Type
- Active
- Socket
- 1200, AM2+, AM3, AM3+, AM4, FM1, FM2, 1150/1151/1155/1156
- Dual Fan
- No
- Colour
- Black
Technical Specifications
- Minimum Noise Level
- 23.6 dB
- RPM (Full Load)
- 2000 rpm
- Thermal Design Power (TDP)
- 180 W
Dimensions
- Width
- 123.6 mm
- Length
- 98.8 mm
- Height
- 159.5 mm
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
