The Pulsar HPSB-12V3A-C power supply provides UPS backup power and supports devices with a voltage of 12 V, 24 V or 48 V DC. It has an adjustable 13.8 V DC output and space for a battery with a capacity of up to 18 Ah, which is not included. Its protections include SCP, OLP, OVP, UVP and deep-discharge protection, and it features a tamper switch for detecting when the enclosure is opened.

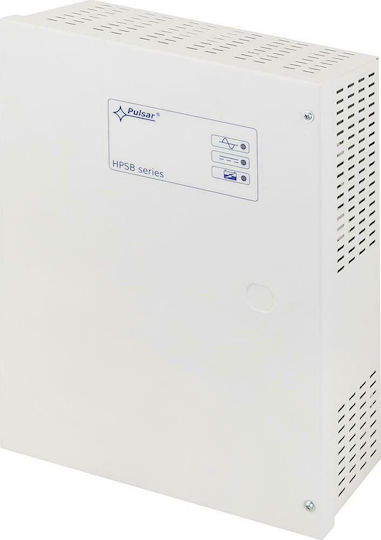

The metal enclosure, made of 0.7 mm-thick DC01 sheet steel, is suitable for surface mounting and is secured with screws. It can also be fitted with a lock. Operation is indicated by an LED.
- Type: UPS power supply
- Output voltage: 13.8 V DC
- Maximum output current: 3.5 A
- Supported device voltages: 12 V, 24 V or 48 V DC
- Output voltage adjustment: Adjustable
- Battery space: Up to 18 Ah
- Battery charging current: 0.5 A
- Protections: SCP, OLP, OVP, UVP and deep-discharge protection
- Tamper switch: Detects when the enclosure is opened
- Enclosure material: Metal
- Construction material: 0.7 mm-thick DC01 sheet steel
- Colour: White RAL9003
- Mounting: Surface-mounted
- Enclosure closure: Screw-fastened, with provision for fitting a lock
- Operation indicator: LED
- Efficiency: 87%
- Ingress protection rating: IP20
- Dimensions: 237 × 90 × 305 mm
- Type
- Power Box
