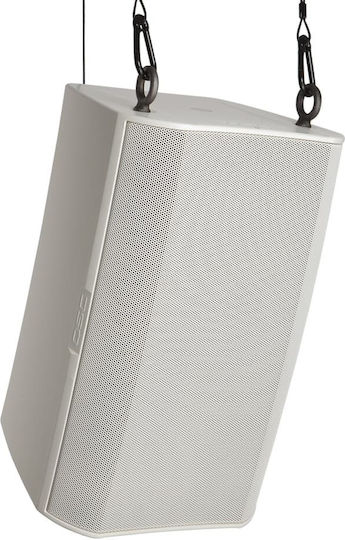

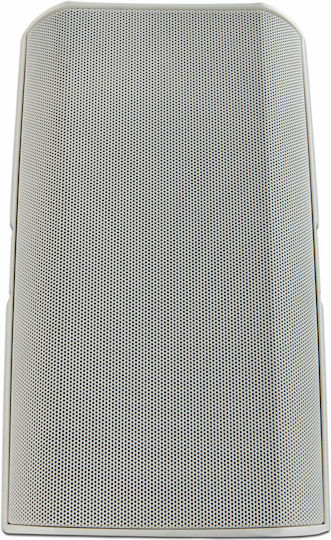

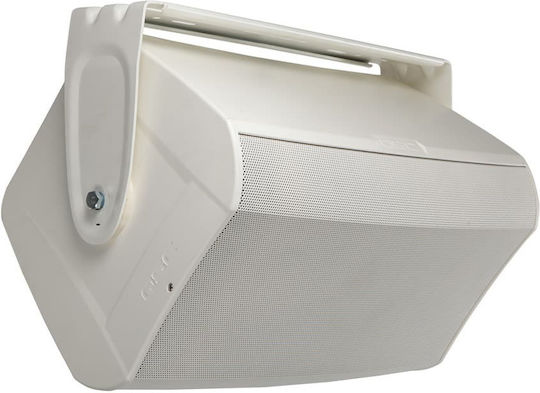

The QSC AD-S8T wall-mounted speaker is a passive two-way model with an 8-inch woofer and 200 W RMS power. It has a sensitivity of 90 dB and a frequency response of 55 Hz to 20 kHz, while its dispersion is 105° (-6 dB).
The enclosure is made of plastic. The package includes an X-Mount mounting system, a Euroblock connector, and an input panel cover.
- Type: Passive
- Mounting: Wall-mounted
- Frequency distribution: 2-way
- Woofer diameter: 8 inches
- RMS power: 200 W
- Impedance: 8 Ω / 70 V / 100 V
- Sensitivity: 90 dB
- Dispersion: 105° (-6 dB)
- Frequency response: 55 Hz–20 kHz
- Maximum continuous sound pressure level: 119 dB
- Enclosure material: Plastic
- Dimensions: 25.4 × 25.1 × 44 cm
- Weight: 11 kg
- Package contents: X-Mount mounting system, Euroblock connector, input panel cover
Technical Specifications
- Power (RMS)
- 200 W
- Driver Configuration
- 2 No of Drivers
- Nominal Impendance
- 8 ohm
- Sensitivity
- 90 dB
Main Specifications
- Placing
- Wall
- Quantity
- Piece
- Colour
- White
- Functionality
- Passive
- IP Protection Rating
- -
- Mounting Bracket
- -
Dimensions
- Height
- 44 cm
- Length
- 25.4 cm
- Length
- 25.1 cm
