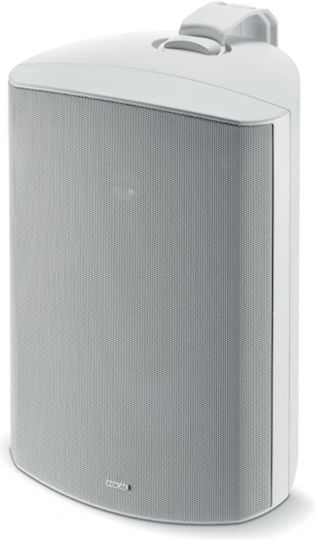

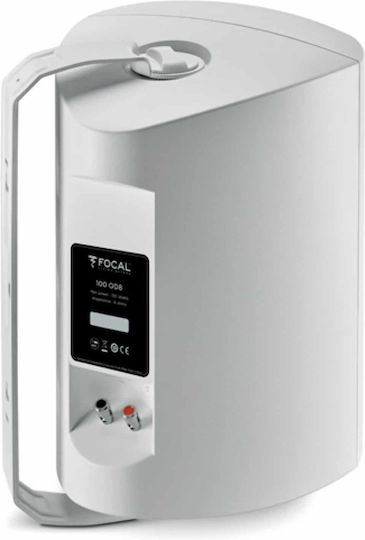

The Focal 100 OD6 wall-mounted speaker is passive and features a two-way design, with an inverted-dome aluminium tweeter and a 6.5-inch woofer with waterproof Polyglass treatment. It has a sensitivity of 87 dB and a nominal impedance of 8 Ω. The mounting bracket is included.
- Installation: Wall-mounted
- Operation: Passive
- Frequency configuration: 2-way
- Tweeter: Inverted-dome aluminium
- Woofer: 6.5 inches (165 mm), waterproof, with Polyglass treatment
- Frequency response: 65 Hz – 23 kHz
- Low-frequency point (-6 dB): 55 Hz
- Crossover frequency: 2,800 Hz
- Sensitivity: 87 dB (2.83 V/1 m)
- Nominal impedance: 8 Ω
- Minimum impedance: 6.7 Ω
- Amplifier power: 20–120 W
- Protection rating: IP66
- Dimensions: 25.6 × 31.9 × 22.4 cm
- Weight: 4.10 kg
- Colour: White
- Quantity: 1
- Mounting bracket: Included
- Product Number
- APA2019-00409
Technical Specifications
- Power (RMS)
- 120 W
- Freequency Range
- 65 - 23000 Hz
- Driver Configuration
- 2 No of Drivers
- Nominal Impendance
- 8 ohm
- Sensitivity
- 87 dB
Main Specifications
- Placing
- Wall
- Quantity
- Piece
- Colour
- White
- Functionality
- Passive
- IP Protection Rating
- IP66
- Mounting Bracket
- Yes
Dimensions
- Height
- 22.4 cm
- Length
- 25.6 cm
- Length
- 31.9 cm
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
