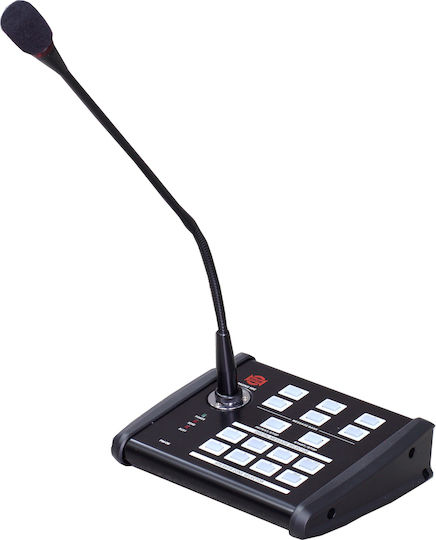

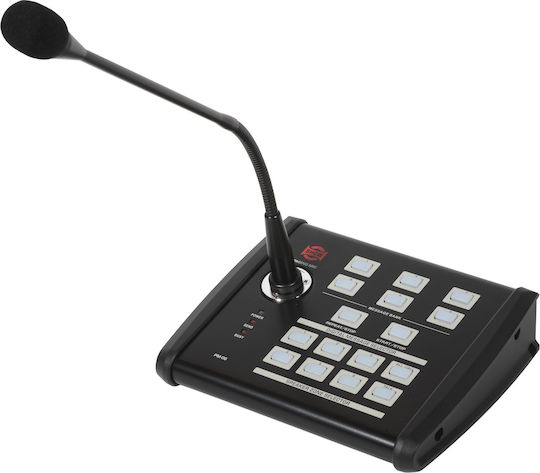

The announcement microphone Show PM-06 is suitable for use with the 6-zone amplifier Show PS-4806. It features an RCA input for connecting an external sound source and connects to the amplifier via a Cat5e cable, allowing the microphone to be installed at a distance of over 100m. The PM-06 includes a built-in Chime and a USB port for connection to a PC, through which the Chime sound can be modified. It also has the capability to play up to 6 pre-recorded messages on the PS-4806 amplifier, with Play/Stop/Repeat controls.

Features

• Suitable for the PS-4806 amplifier
• Slave / Master Mode
• Announcement in up to 6 Zones

Technical Specifications

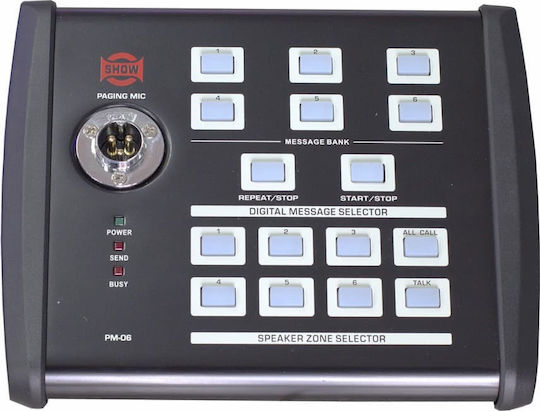

• Front Controls:
  • Push-to-talk switches for announcement in each zone (1-6) and for all zones (ALL ZONE)
  • 6 switches for message playback
  • Start / Stop and Repeat / Stop switches (for messages)
  • LED indicators: Green (Power), Yellow (Send), Red (Busy)

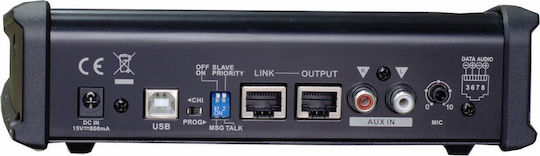

• Rear Controls:
  • USB for PC connection (and Chime modification)
  • CH1 / PROG selector
  • Dip switches for Slave and Priority ON/OFF
  • Audio Out Volume
• Aux input (-10dB ~ 0dB)
• RJ-45 output for connection to the PS-4806 amplifier
• Link: RJ-45 for connection with up to 2 PM-06 units
