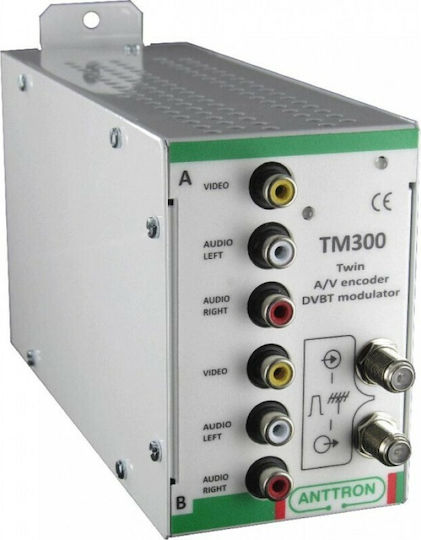

The ANTTRON TM300 modulator converts two RCA sources, such as set-top boxes, DVD players and PlayStation consoles, into a DVB-T MPEG-2 digital signal. The signal is output on a UHF frequency, allowing the sources to be displayed on TVs in a centralised installation.
- Audio and video inputs: 2 × 3 RCA Cinch
- MIX inputs: 2 female F connectors
- Video input level: 0.7–1.5 Vpp
- Video format: PAL, NTSC, SECAM
- Audio input level: 0.5–2.5 Vpp
- Output standard: DVB-T (COFDM)
- Output channel bandwidth: 7 / 8 MHz
- Carrier modulation: QPSK, 16QAM, 64QAM, selectable
- FEC: 1/2, 2/3, 3/4, 5/6, 7/8
- Output level: 75 / 95 dBμV, adjustable by 20 dB
- Output MER: >35 dB
- Output frequency range: 470–862 MHz
- Type
- Modulator
