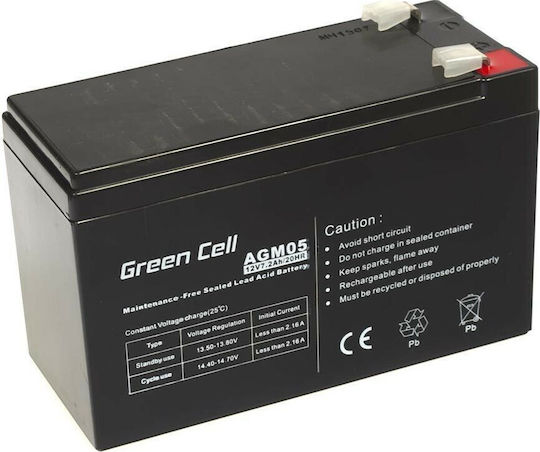

The Green Cell AGM05 UPS battery uses VRLA AGM technology, with the electrolyte held in fiberglass separators between the lead plates. The one-way VRLA pressure valve releases gases if the pressure becomes too high. The battery is maintenance-free and can be used in any position. Suitable for UPS systems, alarm and fire safety systems, solar systems and toys, both in cyclic operation and as a backup power supply.
- Capacity: 7.2 Ah
- Voltage: 12 V
- Type: VRLA AGM

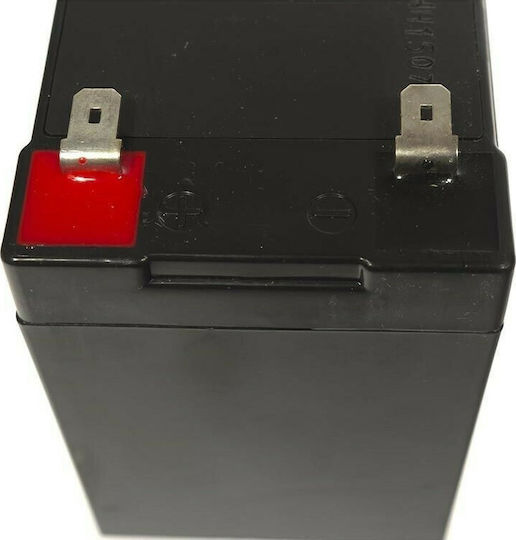

- Terminal: Faston 250 (F2)
- Service life: up to 5 years
- Capacity at 25 °C: 7.5 Ah at 10 hours (0.772 A, 10.5 V), 7.22 Ah at 5 hours (1.35 A, 10.5 V), 6.75 Ah at 1 hour (4.49 A, 10.5 V), 4.49 Ah at 20 hours (0.375 A, 10.5 V)
- Self-discharge: 3% per month at 25 °C
- Capacity by temperature at 20 hours: 102% at 40 °C, 100% at 25 °C, 85% at 0 °C, 65% at -15 °C
- Charging voltage in buffer mode: 13.5–13.8 V (-20 mV/°C)
- Charging voltage in cyclic mode: 14.5–14.9 V (-30 mV/°C)
- Maximum charging current: 2.25 A
- Maximum discharge current: 3C
- Dimensions: 151 × 65 × 94 (98) mm
- Weight: 2.15 kg
- Deep-discharge protection: Yes
- Overcharge protection: Yes
- Overvoltage protection: Yes
- Capacity
- 7.2 Ah
- Voltage
- 12 V
