Thanks to Inverter technology, it maintains a stable temperature and lower consumption compared to standard instant water heaters as it uses only the necessary power to heat the water to the desired temperature.
Inverter Technology
Thanks to Inverter technology, it maintains a stable temperature and lower consumption compared to standard instant water heaters as it uses only the necessary power to heat the water to the desired temperature.
Electronic instant water heater
Electronic instant water heater for providing hot water comfortably and economically from the hot water taps.
The operating power and consumption are controlled by the electronic brain according to the temperature and flow of the incoming water, to select exactly the desired temperature and maintain it steadily.
The selected temperature can range between 35 degrees C and 55 degrees C, adjusted with the touch button and the corresponding LED indicator lights up.
5 Temperature memories that you can easily set for each use:
- 35 degrees C for hand washing
- 38 degrees C for shower
- 42 degrees C for shower
- 48 degrees C for kitchen
- 55 degrees C for other uses
Security
- Flow switch – activates the device only when there is water flow.
- Safety thermostat – protection against overheating
- Inlet temperature sensor – monitors the temperature of the water entering the device
- Outlet temperature sensor – monitors the temperature of the water exiting the device

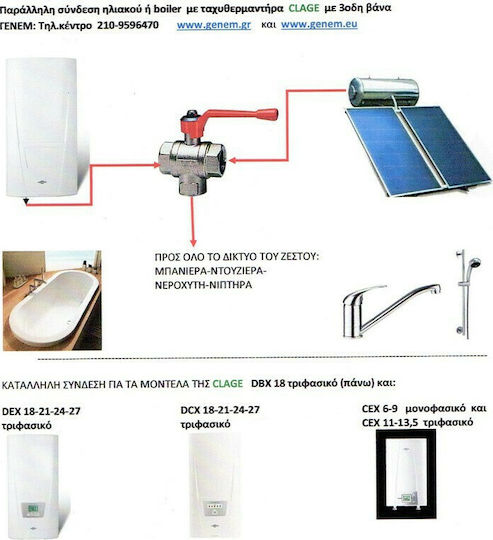

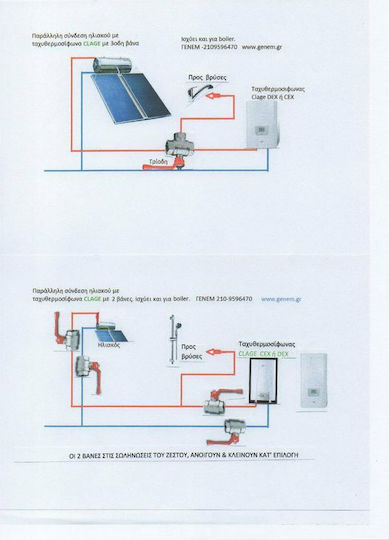

Installation
It is central and can be used either as the main option for heating the water in your home, or as a supplementary. It can provide hot water throughout the house for your daily needs, as long as there are suitable pipes for the distribution of hot water. This may potentially result in heat and energy losses due to the distance.
What is an instant water heater?
The instant water heater is a type of water heater that heats water in real-time. It only heats the water that passes through it at that moment. There is no hot water storage tank. This has many advantages, such as energy savings, since only the water that is used is heated, and longer lifespan, as there is no water tank and no accumulation of salts on the resistance and other components.
It operates with electricity and is three-phase, meaning a three-phase power supply is required.
How It Works
The instant water heater has an inlet pipe for cold water, which passes through the heating element, gets heated, and exits through the hot water outlet pipe. A necessary condition for the initial operation of the instant water heater is the pressure of the incoming cold water should not be too low.
The water temperature is regulated by a thermostat, so it does not exceed a maximum value. The temperatures that the hot water reaches are preset so that one can use the hot water directly, without the need for mixing with cold water.
The maximum temperature it can reach for hot water production is 55 °C, while the maximum water flow rate reaches up to 5 liters per minute. Indicatively, 38-42 °C degrees are standard for shower use.
Advantages of instant water heaters compared to traditional electric water heaters
- It is small in size and does not take up much space.
- There are no energy losses, as only the water being used at that moment is heated. Therefore, we save on the electricity bill. In a traditional water heater, the hot water that is not used goes to waste.
- The hot water used in the instant water heater is used as is, without mixing with cold, as happens in a traditional water heater. Thus, we also save water, in addition to electricity.
- There is no need to wait for the water to heat up. As soon as we turn on the tap, hot water flows in a few seconds. The traditional water heater takes a few minutes, depending on its size.
- The hot water never runs out. As long as we have the tap open, we will have hot water.
Product Guides
- Product Number
- 3200-36313
Product Details
- Power Source
- Three-phase electric
- Maximum Power
- 13.5 kW
- Maximum Flow Rate
- 5 lt/min
- Maximum Temperature
- 55 °C
- Temperature Setting
- Heating Levels
- Placement
- Central Installation
- Wall Mounted
- Yes
- Inverter
- Yes
- Remote Control
- No
Dimensions
- Height
- 46.6 cm
- Width
- 23 cm
- Length
- 9.7 cm
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
