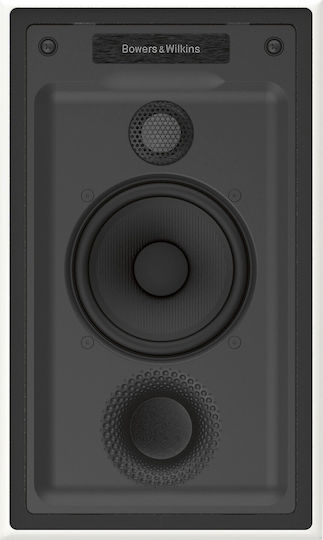

The CWM7.5 features the acoustic arrangement of the 707 S2 and includes a 130mm (5in) Continuum cone driver woofer and a 25mm (1in) Carbon Dome tweeter, combined with a FlowportTM aimed at achieving exceptional bass response from a relatively small size. It is designed with a critically shaped baffle made of reinforced ABS glass and includes an integrated backbox, ensuring easy installation and optimal performance. It is ideal for use in stereo or multi-room installations and works just as well as the rear speaker in larger theater applications.
- Carbon Dome tweeter
- Continuum mid/bass
- Flowport
Technical Specifications:
- Configuration: 2-way in-wall system
- Drive units: 1x ø25mm (1 in) Carbon Dome high-frequency, 1x ø130mm (5 in) Continuum cone mid/bass
- Frequency range (-6dB): -6dB at 43Hz and 33kHz
- Frequency response -3dB: 45Hz - 28kHz ±3dB
- Sensitivity: 86dB spl (2.83Vrms, 1m)
- Harmonic distortion: 2nd and 3rd harmonic (90dB, 1m)
Technical Specifications
- Driver Configuration
- 2 No of Drivers
- Sensitivity
- 86 dB
Main Specifications
- Placing
- In Wall
- Quantity
- Piece
- Colour
- Black
- IP Protection Rating
- -
- Mounting Bracket
- -
