Phase Relays

Abb Phase Relays Power 12A Three-Pole With Voltage 400V 5.5kW 250VAC/DC +1NO

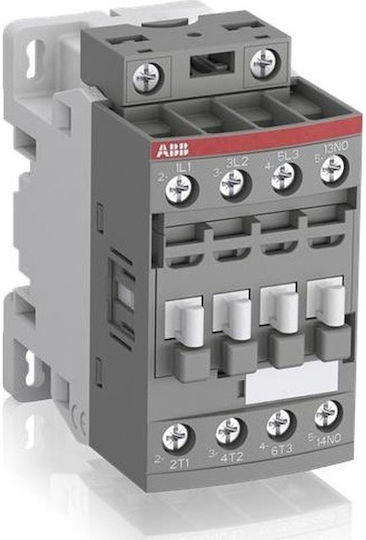

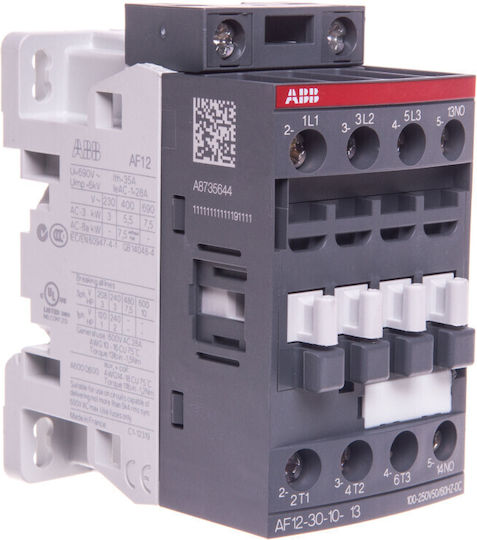

The 3P Power Relay 5.5KW 100-250AC/DC AF12-30-10-13 45357 features AF technology, allowing a wide control voltage range (100-250 V 50/60 Hz and DC). It handles large fluctuations in control voltage,...

The 3P Power Relay 5.5KW 100-250AC/DC AF12-30-10-13 45357 features AF technology, allowing a wide control voltage range (100-250 V 50/60 Hz and DC). It handles large fluctuations in control voltage, reducing the energy consumption of the panel and ensuring effective operation in unstable networks.

Advantages:

  • Built-in surge protection.
  • Block-type design for...
See full description See full description

What if it breaks?

You're covered by the statutory 2-year warranty. Contact us and we'll handle the entire process with the store, ensuring your issue is resolved with prompt support through a repair, replacement, or refund.

What if I change my mind?

No problem, as long as it's within 14 days. We'll come pick it up or you can choose the Skroutz Point that suits you, completely free for up to 2 times per year, and we'll refund your money. Get Skroutz Plus to enjoy unlimited free returns.

Learn more about invoicing

Description

Description

The 3P Power Relay 5.5KW 100-250AC/DC AF12-30-10-13 45357 features AF technology, allowing a wide control voltage range (100-250 V 50/60 Hz and DC). It handles large fluctuations in control voltage, reducing the energy consumption of the panel and ensuring effective operation in unstable networks.

Advantages:

  • Built-in surge protection.
  • Block-type design for easy expansion with additional auxiliary contact blocks.
  • Additional wide range of accessories available.

Used for controlling three-phase motors and power switching circuits up to 690V AC and 220V DC. It features screw terminals.

Specifications:

  • Number of Main Contacts: 3NO
  • Number of Auxiliary Contacts: 1NO
  • Rated Control Circuit Voltage AC (Uc): 100...250V
  • Rated Control Circuit Voltage DC (Uc): 100...250V
  • Rated Operational Current AC-1 (Ie): 28A (690V)
  • Rated Operational Current AC-3 (Ie): 12A (220-440V)
  • Rated Impulse Voltage (Uimp): 6kV
  • Rated Operational Capacity AC-3 (Pe):
    • 220/230/240 V: 3 kW
    • 380/400 V: 5.5 kW
    • 415 V: 5.5 kW
    • 440 V: 5.5 kW
    • 500 V: 7.5 kW
    • 690 V: 7.5 kW

Dimensions:

  • Width: 45mm
  • Depth: 77mm
  • Height: 86mm

Manufacturer

See full description

Specifications

Specifications

Type
Power
Number of Poles
3
Voltage
400 V
Nominal Voltage
12 A
with Energy Consumption Meter
No
with Timer
No
Type of Residual Current Relay
Type A

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
